CS-CM4-BOX
$118
- Description
- Additional information
Description

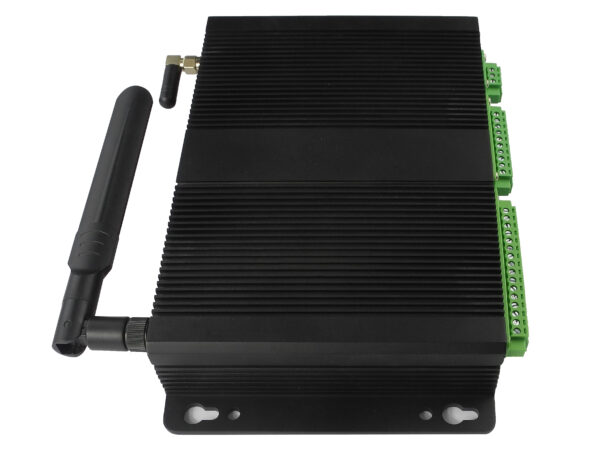

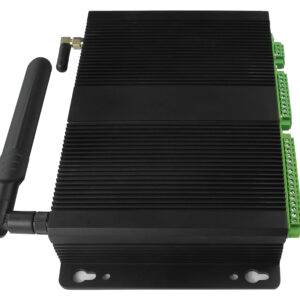

The CS-CM4-BOX is an efficient, fanless industrial box PC powered by the Raspberry Pi CM4, a powerful Quad Cortex®-A72 processor clocked at 1.5GHz, balancing speed and efficiency. Its compact and lightweight design, complemented by integrated brackets, allows for secure mounting on any flat surface, including industrial cabinets and walls.
This unit boasts a wide array of connectivity options, making it highly adaptable for challenging industrial or outdoor settings where robust communication capabilities are essential.

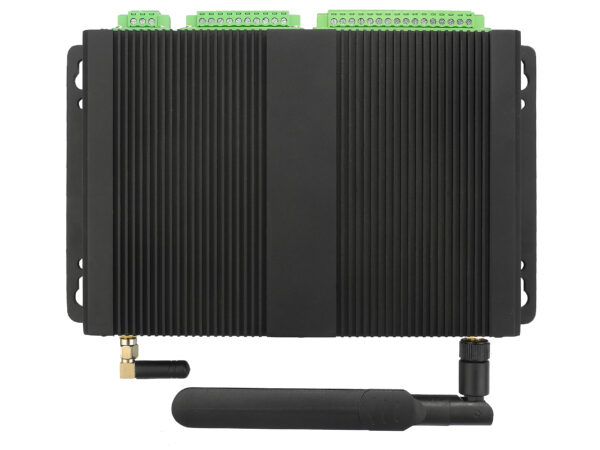

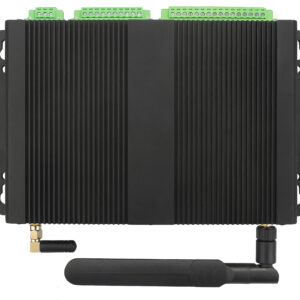

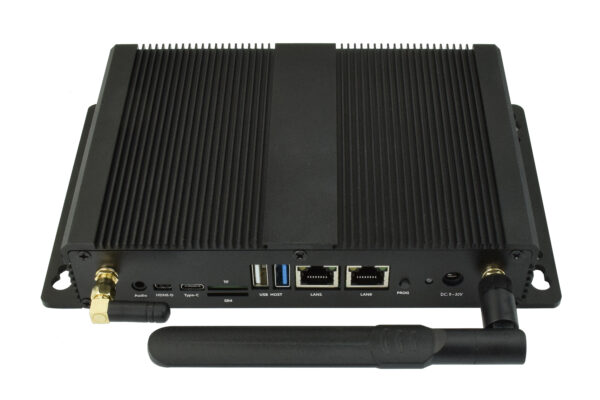

Engineered with specially designed aluminium housing that includes fins, the CS-CM4-BOX achieves enhanced heat dissipation through passive cooling. This thoughtful design negates the need for internal fans, thereby reducing noise and cutting down on maintenance costs and efforts, making it an ideal solution for environments where quiet operation and low maintenance are priorities.
Additional information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 20.9 × 12.5 × 37.3 cm |
- Description
- Specification
- Documents
The CS-CM4-BOX is powered by the Raspberry Pi CM4, a Quad Cortex®-A72 processor, operating at a speed of 1.5GHz, providing a balance of performance and efficiency.

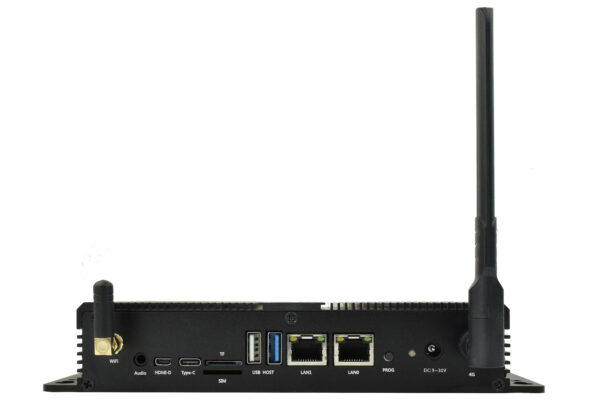

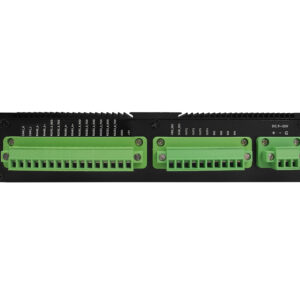

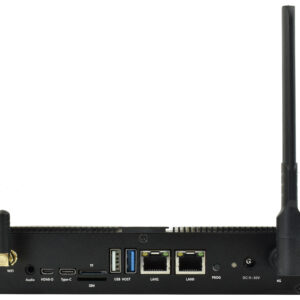

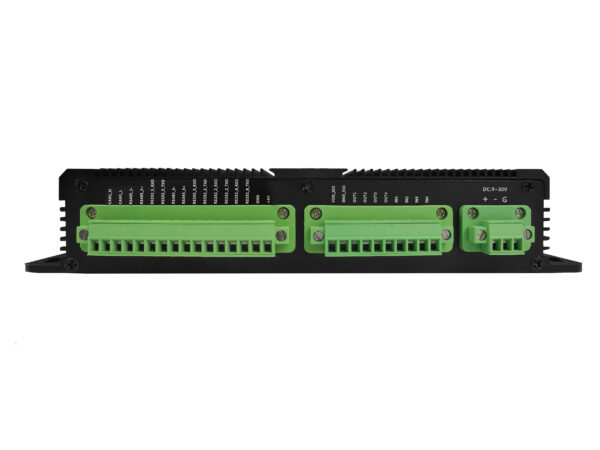

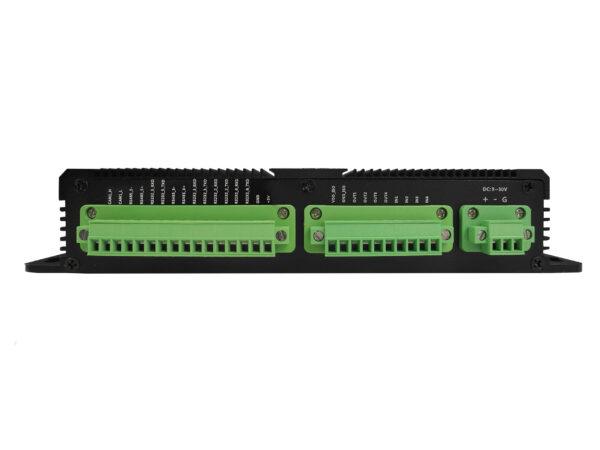

This device offers extensive connectivity options to cater to diverse requirements. It includes a CAN bus for automotive communications, USB 3.0 and USB Type-C OTG for high-speed data transfer, dual LAN ports for network redundancy, RS232 and RS485 interfaces for serial communication, and an HDMI output supporting HD external displays.
The integrated WiFi/Bluetooth functionality is determined by the Raspberry Pi CM4 module chosen. A 4G/LTE module is also available as an optional add-on, enhancing its wireless capabilities. Both modules come with antennas for optimal signal reception.
Regarding power management, the CS-CM4-BOX is equipped with robust protection features. These include safeguards against over-current, over-voltage, power surges, and reverse polarity, ensuring compliance with stringent industrial safety standards. This makes the CS-CM4-BOX a reliable choice for demanding industrial applications.
| Weight | 1100 g |
|---|---|
| Dimensions | 209 × 125 × 37.3 mm |
| Net weight | 900 g |
| Form-factor | Box |
| CPU | ARM: Raspberry Pi CM4 |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |
| WiFi/BT | CM4 dependable |
| 4G/LTE | Optional |
| PoE | Optional |
| Zigbee | Optional |
| USB | 2x USB 3.0 HOST, 1 x USB Type-C OTG |
| CAN | 1 x CAN-BUS |
| RS232 | 2 x RS232 by default; up to 4 x RS232 |
| RS485 | 2 x RS485 by default that can be configured as 2 x RS232 |
| HDMI | Yes |
| GPIO | Option 1: 4 x input, 4 x output from expander IC (optical isolated, DEFAULT). Option 2: 6 x CM4 CPU GPIO (conflict with option 1). |
| LAN | 2 x Giga LAN |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| I2C | Not supported |
| SATA II | Not supported |
| Buzzer | Onboard, driven by GPIO |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| OS | Raspberry Pi OS |
| Current | 360mA (max) at 15V |
| Power Input | 6~36V DC |
| Power Consumption | 5.4W Max |
| Working Temperature | 0°C to +60°C |

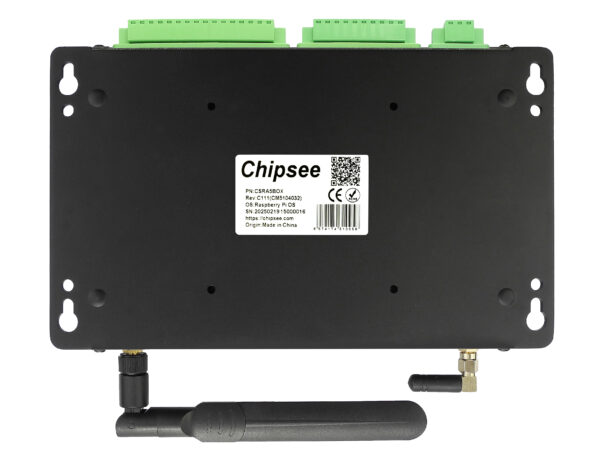

| Mounting method | Rear, VESA |
| GTIN | 6974174310958 |
