CS-A53-BOX
$206
Reliably connect the fusion board to SK-TDA4VM (Starter kit) using this Kit. This Kit includes a bracket , mounting hardware, power cable and connector and also instructions on how to connect the platforms together.
- Description
- Additional information
Description
The CS-A53-BOX is a versatile, fanless industrial box PC powered by the energy-efficient NXP i.MX8MP processor featuring a quad-core Cortex®-A53 at 1.6GHz. Its lightweight design and integrated brackets enable secure mounting on any flat surface, including walls and industrial cabinets.
This unit offers extensive connectivity options, making it highly adaptable for challenging industrial or outdoor settings.

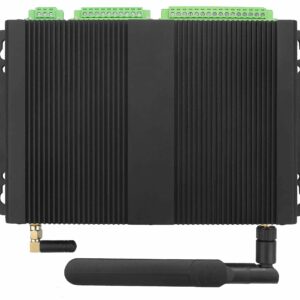

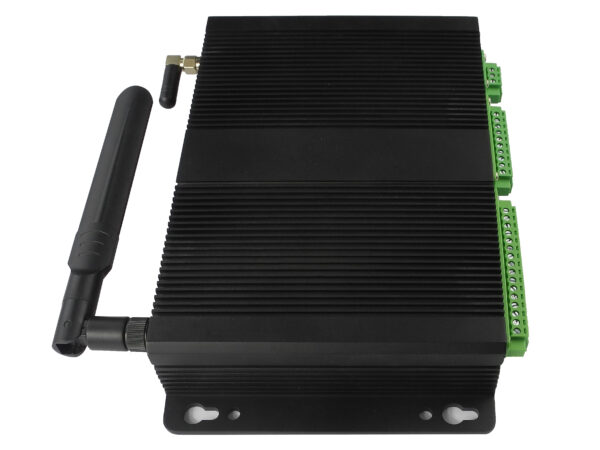

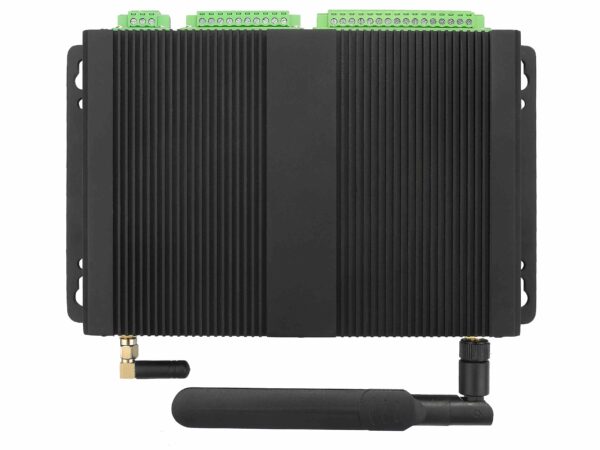

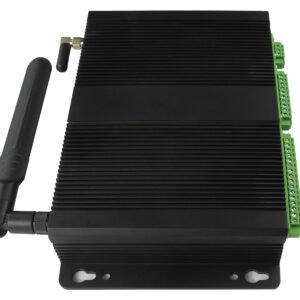

Encased in a specially designed aluminum housing with fins, the CS-A53-BOX achieves efficient heat dissipation through passive cooling. This fanless construction ensures quiet operation and reduces maintenance costs and efforts, making it ideal for noise-sensitive and maintenance-averse environments.
Additional information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 20.9 × 12.5 × 3.73 cm |
- Description
- Specification
- Documents
The CS-A53-BOX is driven by the robust NXP i.MX8MP processor, featuring a quad-core Cortex®-A53 at 1.6GHz, ensuring efficient and reliable performance.

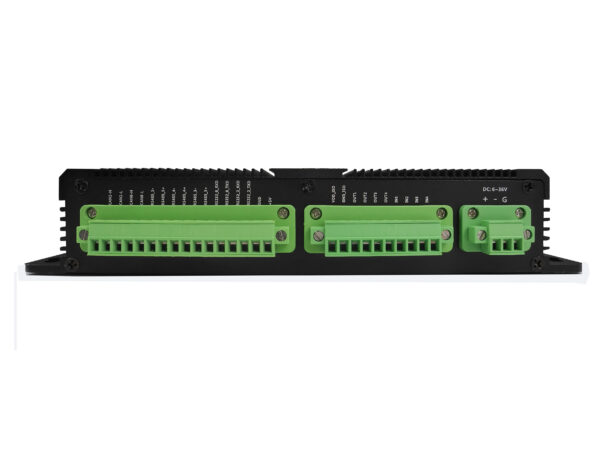

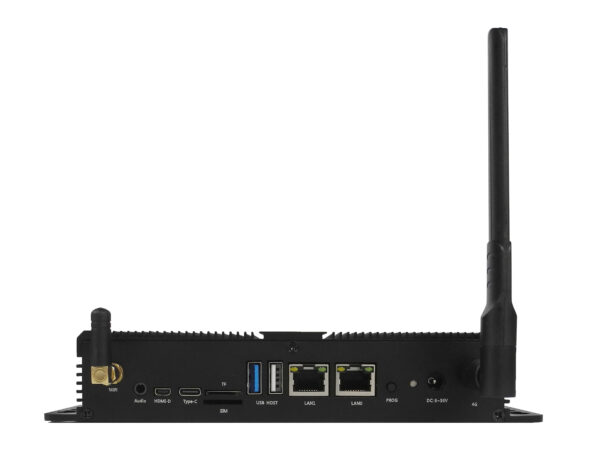

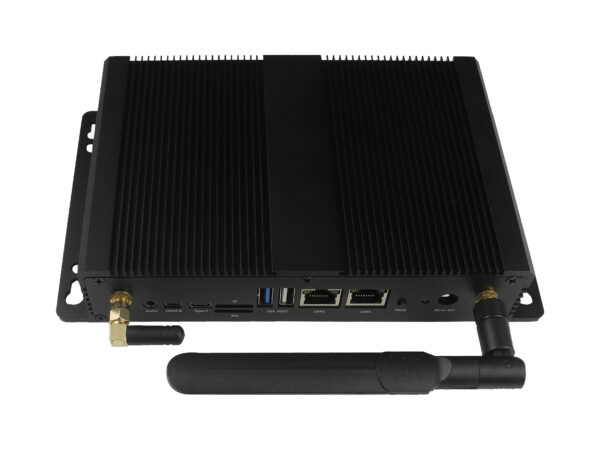

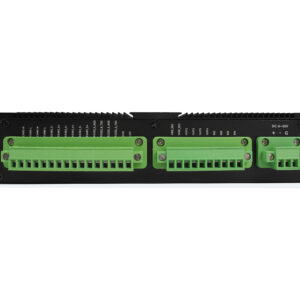

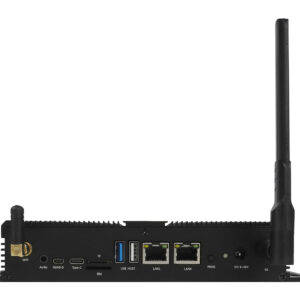

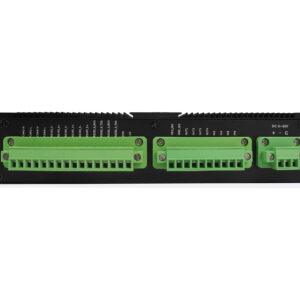

This device is equipped with various connectivity options to suit multiple needs. It includes a CAN bus for diverse communication needs, USB ports for data transfer, dual LAN ports for network redundancy, RS232 and RS485 interfaces for serial communications, and an HDMI output for connecting an external HD monitor.
For wireless connectivity, the CS-A53-BOX comes with a pre-installed WiFi/Bluetooth module. An optional 4G/LTE module can also be added at purchase, with both modules complete with antennas for enhanced signal reception.
The power input of the CS-A53-BOX is fortified with multiple protection features, such as over-current, over-voltage, power surge, and reverse polarity protection. These safeguards ensure the device complies with rigorous industrial safety standards, making it a secure choice for demanding industrial applications.
| Weight | 1200 g |
|---|---|
| Dimensions | 209 × 125 × 37.3 mm |
| Net weight | 900 g |
| Form-factor | Box |
| CPU | ARM: NXP i.MX8MP |
| CPU Frequency | NPU 2.3TOPS, Quad Cortex A53, 1.6GHz |
| RAM | LPDDR4 4GB |
| eMMC | 32GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| USB | 1 x USB 3.0 HOST, 1 x USB Type-C, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default (1 x CAN can be configured to RS232 optionally) |
| RS232 | 2 x RS232 by default (Optional 6 x RS232 at most, including 1 debug port) |
| RS485 | 3 x RS485 at most by default |
| LAN | 2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port |
| HDMI | 1 x HDMI-D (Micro HDMI) OUT |
| GPIO | 8 Channels, 4 Input, 4 Output |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| WiFi/BT | Onboard |
| 4G/LTE | Optional |
| PoE | Optional |
| Buzzer | Onboard, driven by GPIO |
| SSD | Not supported |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| OS | Yocto |
| Current | 350mA (max) at 15V |
| Power Input | 6~36V DC |
| Power Consumption | 5.25W (max) |
| Working Temperature | -40°C to +85°C |

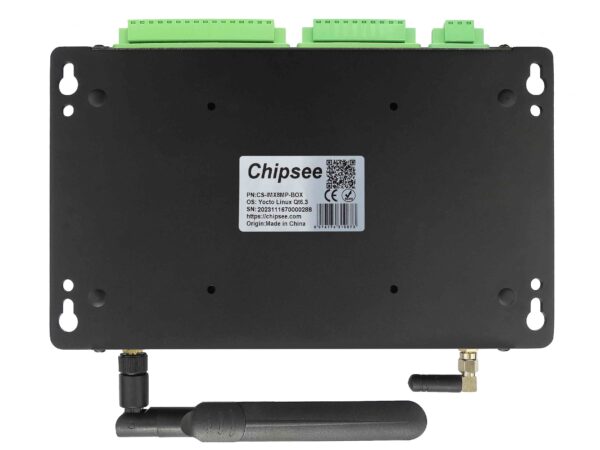

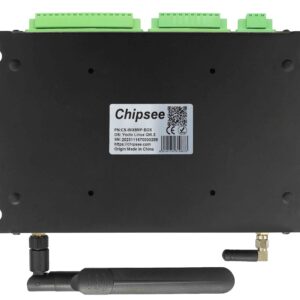

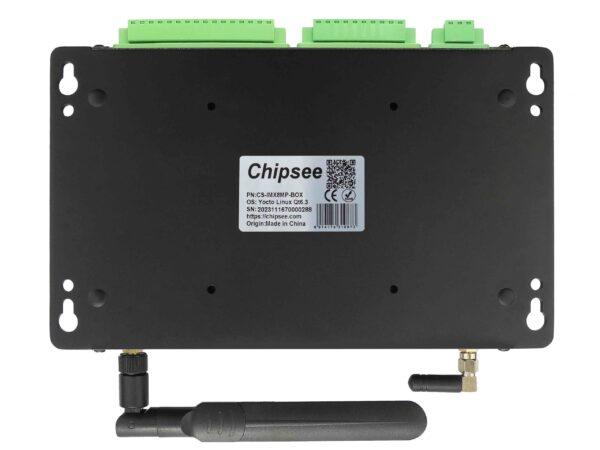

| Mounting method | Rear, VESA |
