PPC-CM5-133
$340
- Description
- Additional information
Description

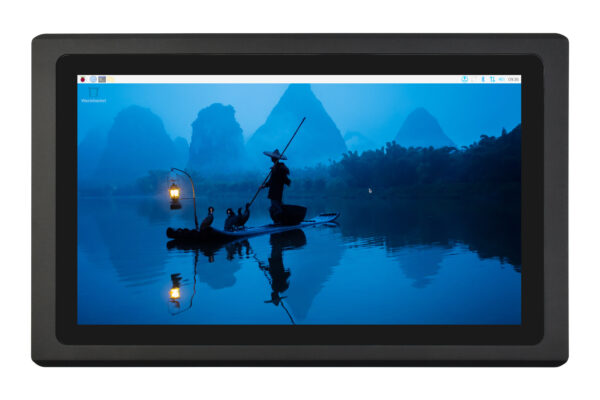

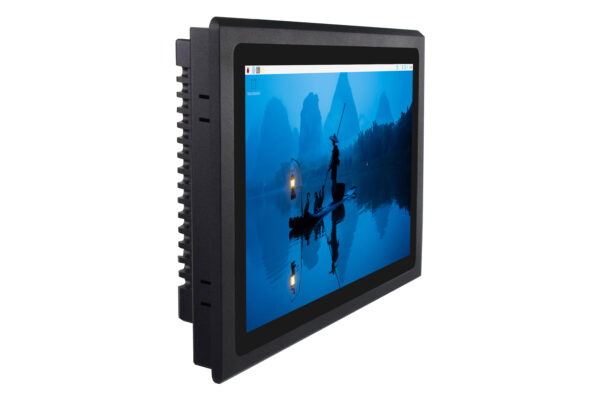

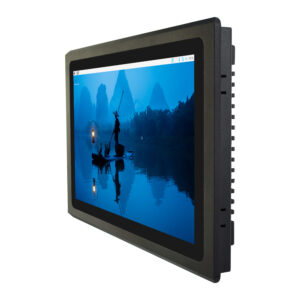

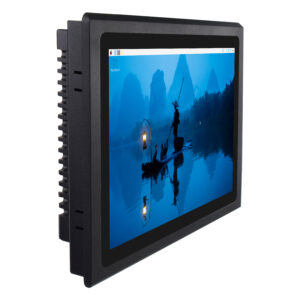

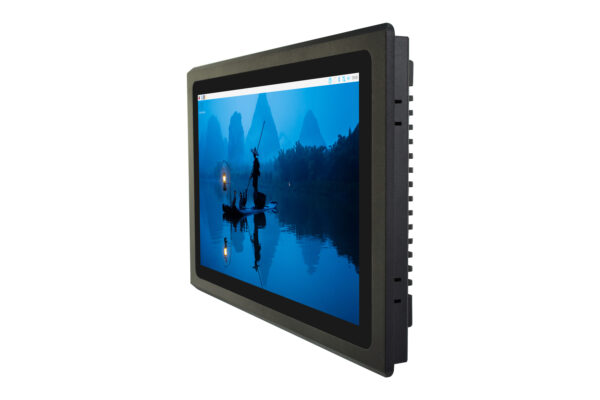

The PPC-CM5-133 is a 13.3” industrial PC built on the powerful Raspberry Pi® Compute Module 5, featuring the Quad Cortex®-A76 processor with a speed of 2.4GHz.

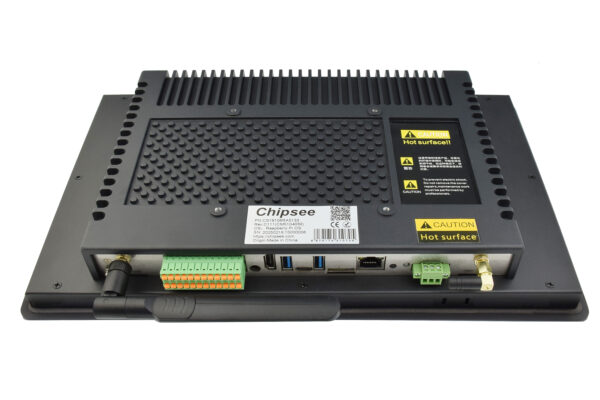

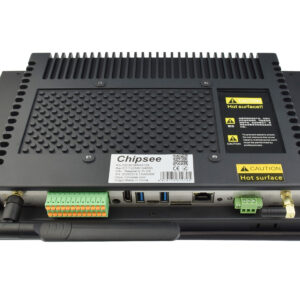

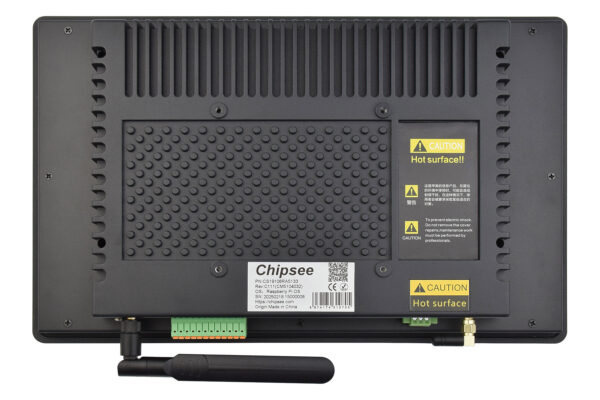

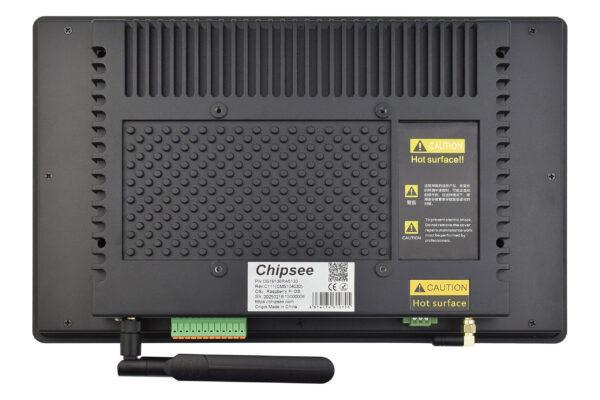

Its durable metal casing designed for easy installation using panel or VESA mounting methods makes it suitable for a wide range of applications. Beyond its robust design, It stands out with powerful performance, edge AI capabilities, and smooth integration into the extensive Raspberry Pi ecosystem meeting the needs of engineers and developers across various industries.
The Raspberry Pi® Compute Module 5 (CM5) is available in multiple configurations. The PPC-CM5-133 includes the CM5 module of your choice at the time of ordering.
Additional information
| Weight | 4.49 kg |
|---|---|
| Dimensions | 35.5 × 22.5 × 5.5 cm |
- Description
- Specification
- Documents
The PPC-CM5-133 is a powerful industrial solution that combines advanced hardware and robust connectivity options to meet the demands of various industrial projects.
The Raspberry Pi Compute Module 5 (CM5), featuring a quad-core Cortex-A76 processor running at 2.4GHz and up to 8GB of LPDDR4X-4267 SDRAM, delivers exceptional performance.

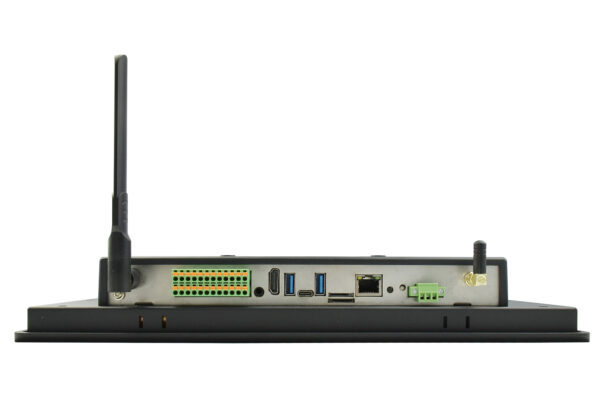

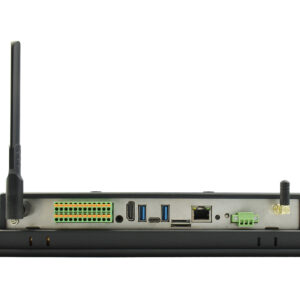

The device supports a wide range of communication protocols, including RS232, RS485, and CAN, enabling easy and versatile integration with various systems.

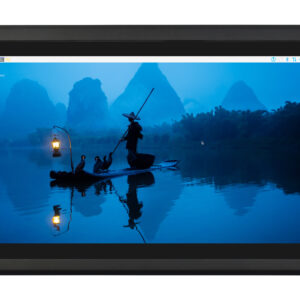

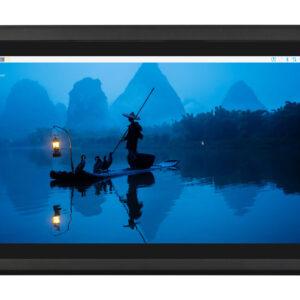

Its 13.3’’ display includes a 10-point capacitive touchscreen protected by armored glass for enhanced durability. Combined with an extended operating temperature range of 0°C to +80°C, the PPC-CM5-133 ensures reliable performance, even in challenging environments.
| Weight | 4490 g |
|---|---|
| Dimensions | 355 × 225 × 55 mm |
| Net weight | 4400 g |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| PCIe | PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |
| Storage | Supports 1 x TF Card |
| Display size | 13.3″ |
| Display resolution | 1920*1080 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| USB | 1 x USB Type-C OTG, 2 x USB 3.0 type-A Host |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI 2.0 Out, can be driven up to 4K 60FPS |
| RS232 | Default 2 x RS232, up to 4 x RS232 |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 1 x Giga LAN |
| I2C | Not supported. |
| WiFi/BT | Depends on CM5 |
| 4G | Optional |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Camera | Optional |
| Working Temperature | 0°C to +80°C |
| ZigBee | N/A |
| Power Input | 15-30V DC |
| Power Consumption | 13.5W typical, 16.5W max |
| Current at 15V | 1100mA max, 900mA typical |
| OS | Raspberry Pi OS |
| Mounting Method | VESA, PANEL |
| Color | Black, Grey |
