PPC-CM5-101
$249
- Description
- Additional information
Description
The PPC-CM5-101 is a 10.1” industrial PC built on the powerful Raspberry Pi® Compute Module 5, featuring the Quad Cortex®-A76 processor with a speed of 2.4GHz.

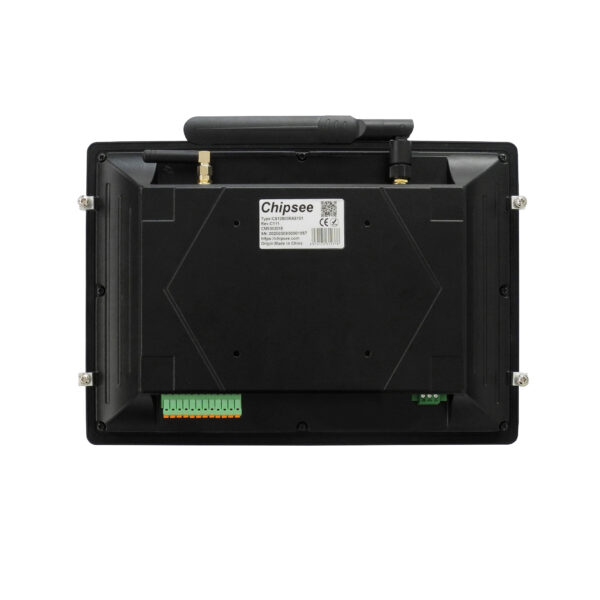

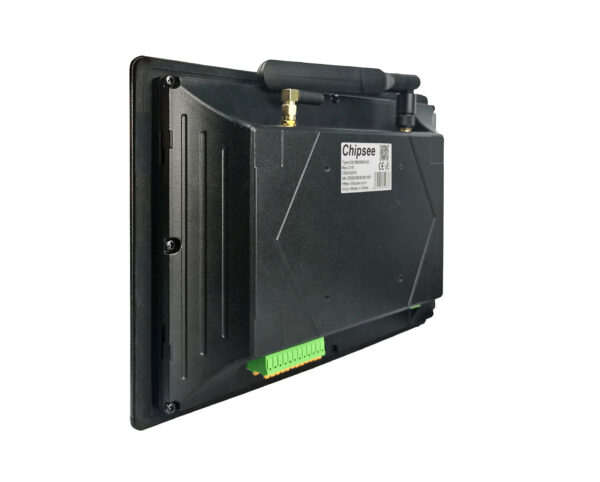

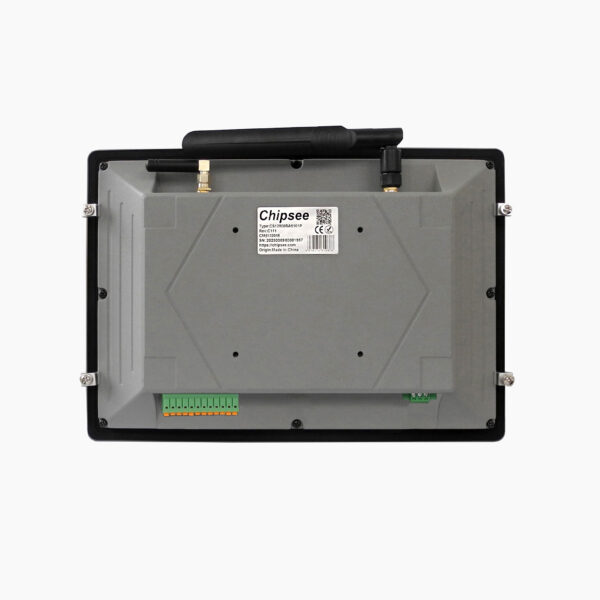

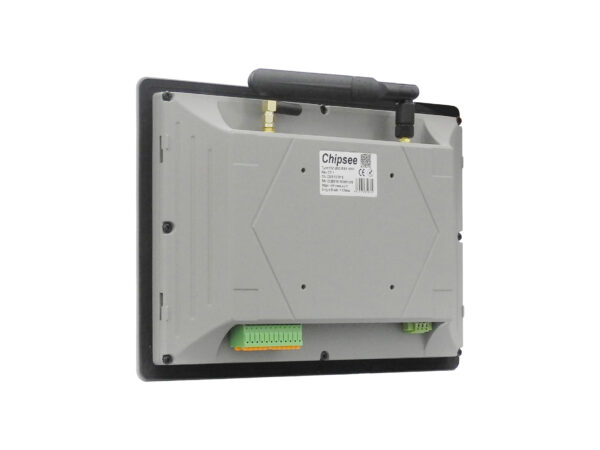

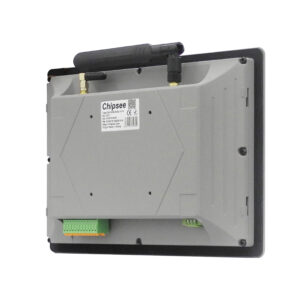

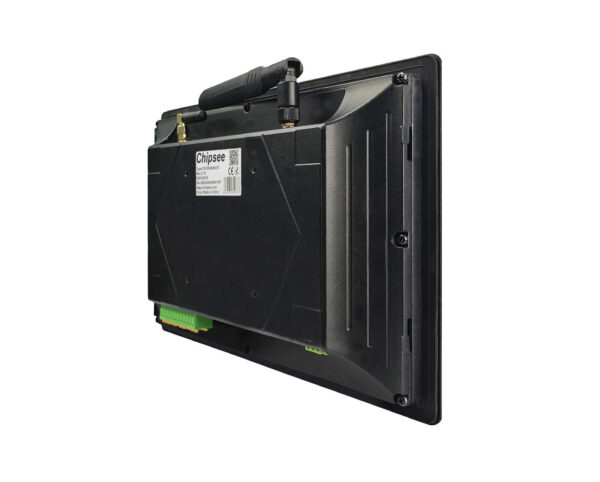

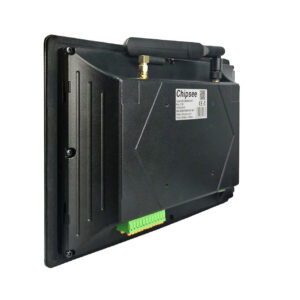

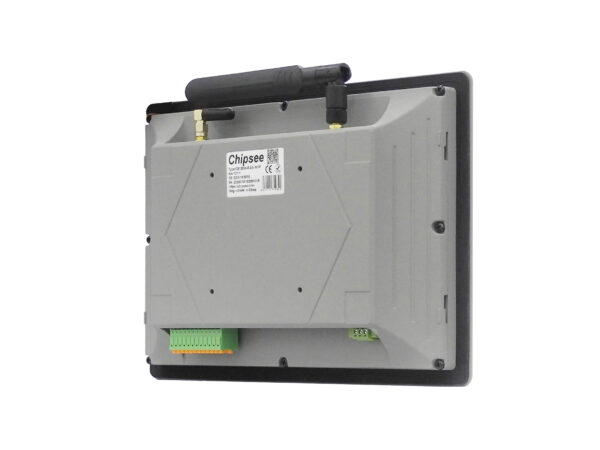

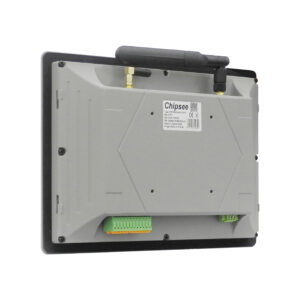

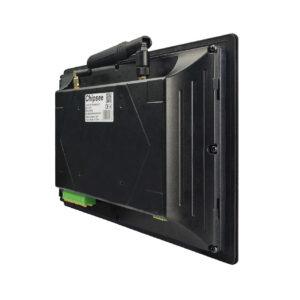

The PPC-CM5-101 features a durable metal casing designed for easy installation using either panel or VESA mounting methods. With its powerful performance, edge AI capabilities, and integration into the vast Raspberry Pi ecosystem, this panel PC delivers a versatile computing solution that meets the needs of engineers and developers across various industries.
The Raspberry Pi® Compute Module 5 (CM5) is available in multiple configurations. With the PPC-CM5-101 industrial PC, you can choose the CM5 module that best meets your requirements during the ordering process.
Additional information
| Weight | 2.4 kg |
|---|---|
| Dimensions | 27.6 × 19.4 × 4.6 cm |
- Description
- Specification
- Documents
The PPC-CM5-101 is a powerful industrial solution that combines advanced hardware and robust connectivity options to meet the demands of various industrial projects.
The Raspberry Pi Compute Module 5 (CM5), featuring a quad-core Cortex-A76 processor running at 2.4GHz and up to 8GB of LPDDR4X-4267 SDRAM, delivers exceptional performance.

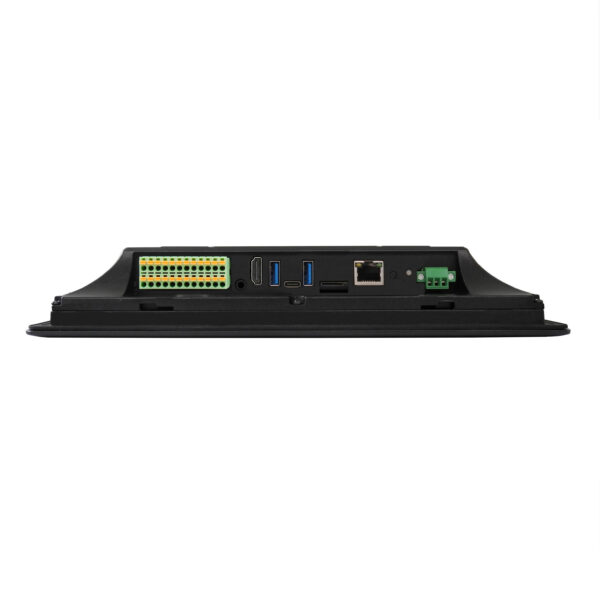

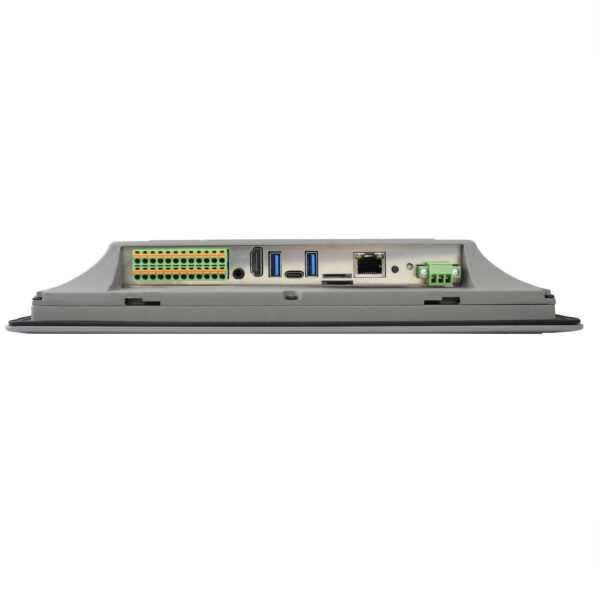

The device supports a wide range of communication protocols, including RS232, RS485, and CAN, enabling easy and versatile integration with various systems.

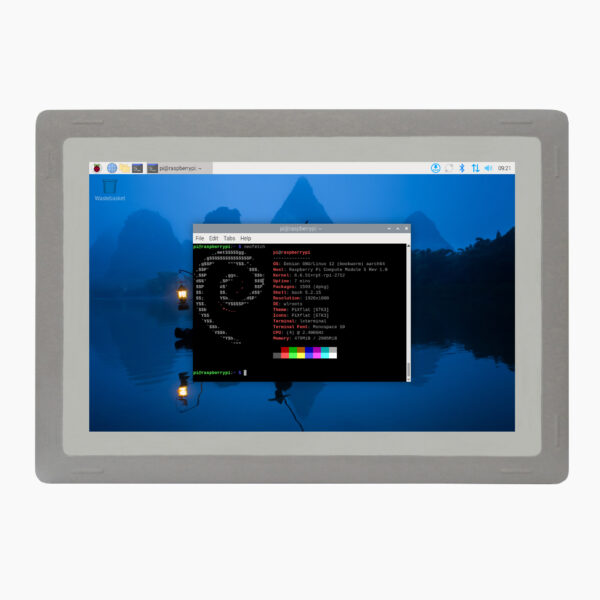

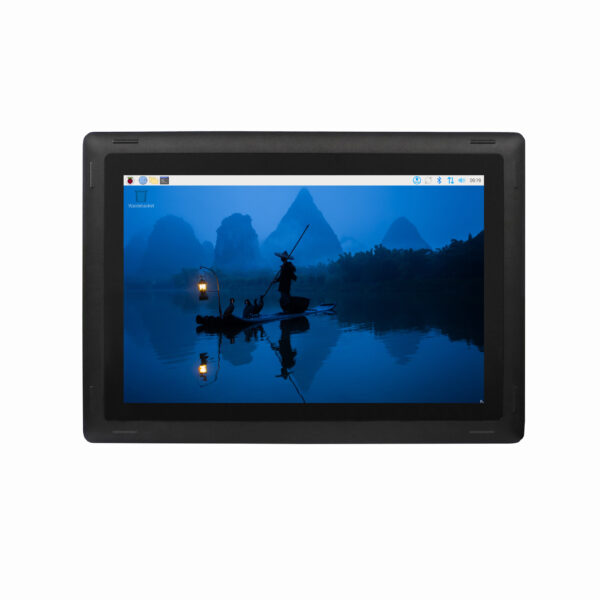

Its 10.1’’ display includes a 10-point capacitive touchscreen protected by armored glass for enhanced durability. Combined with an extended operating temperature range of -20°C to +70°C, the PPC-CM5-101 ensures reliable performance, even in challenging environments.
| Weight | 2400 g |
|---|---|
| Dimensions | 276 × 194 × 46 mm |
| Net weight | 1600 g |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |
| Storage | Supports 1 x TF Card |
| Display size | 10.1″ |
| Display resolution | 1280*800 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| PCIe | PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket |
| USB | 1x USB 3.0 HOST, 1 x USB OTG |
| CAN | 1x CAN |
| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI 2.0 Out, can be driven up to 4K 60FPS |
| RS232 | Default 2 x RS232, up to 4 x RS232 |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 1 x Giga LAN |
| I2C | Not supported. |
| WiFi/BT | Depends on CM5 |
| 4G | Optional |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| ZigBee | N/A |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Current at 15V | 560mA typical, 880mA max |
| Power Input | 15-30V DC |
| Power Consumption | 8.4W, 13.3W Max |
| Working Temperature | -20°C ~ 70°C. |
| Camera | Optional |
| OS | Raspberry Pi OS |
| Mounting Method | VESA, PANEL |
