PPC-A76-101
$345
- Description
- Additional information
Description

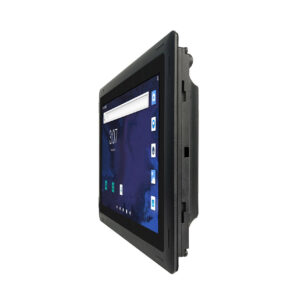

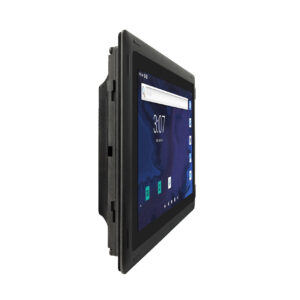

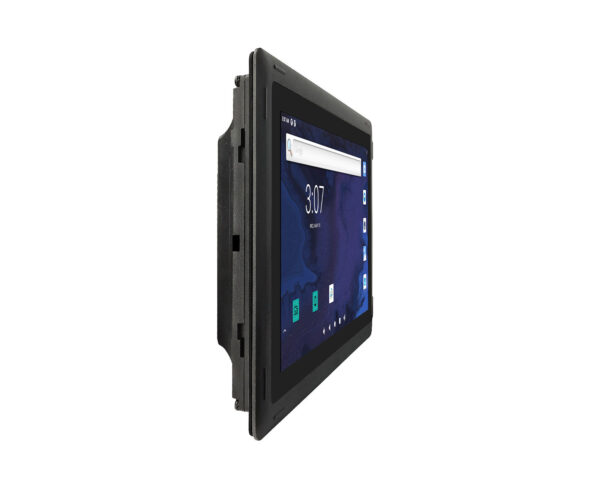

The PPC-A76-101 is a 10.1’’ panel PC designed for demanding industrial environments.
Powered by the advanced Rockchip RK3588J processor, it delivers exceptional performance and efficiency, making it suitable for a wide range of applications. Thanks to its robust design and extensive functionality it can be easily integrated into various industrial systems and operations.
Whether used in automation, control systems, or data processing, PPC-A76-101 stands as a powerful and reliable component within any industrial setup.

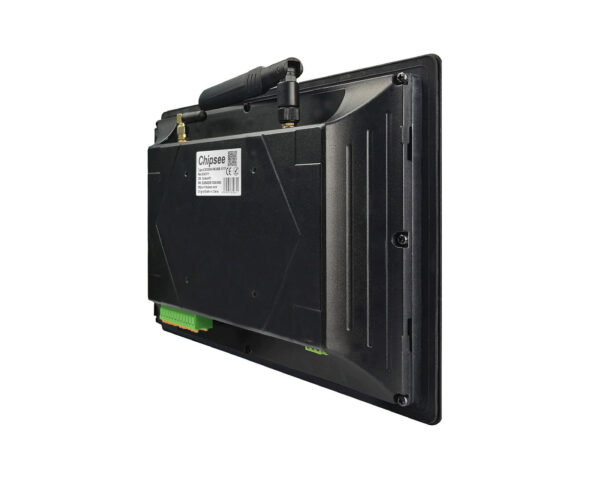

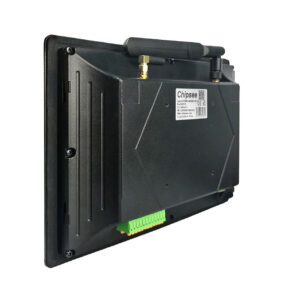

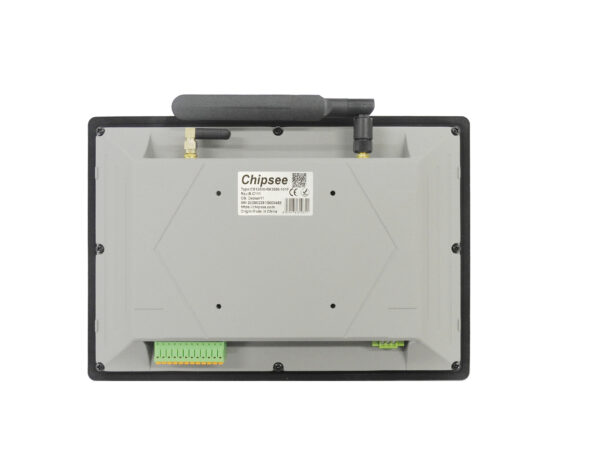

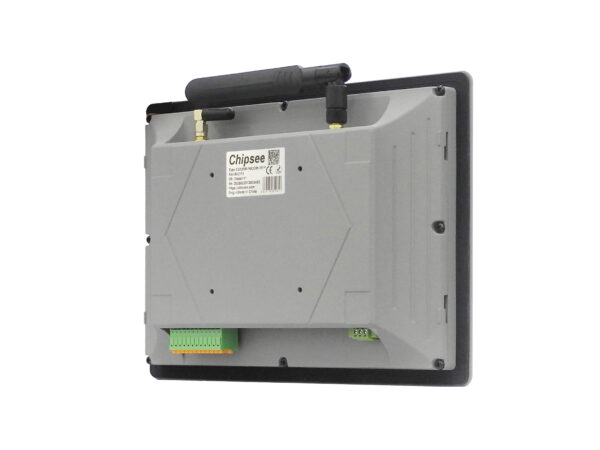

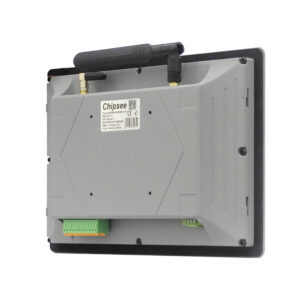

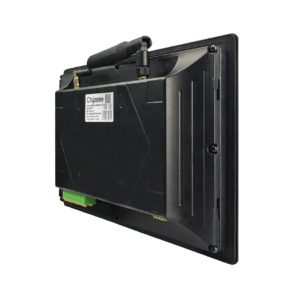

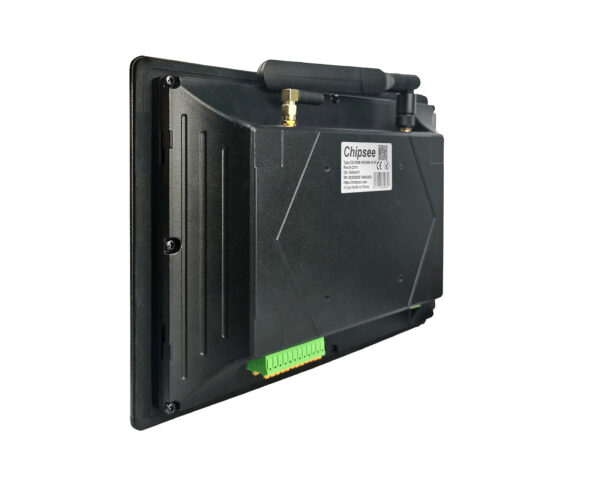

The PPC-A76-101 features a durable metal enclosure available in two colors: black and gray.
Additional information
| Weight | 2.27 kg |
|---|---|
| Dimensions | 27.55 × 19.35 × 4.6 cm |
- Description
- Specification
- Documents
The PPC-A76-101 is powered by Rockchip RK3588J which features an octa-core CPU with four Cortex-A76 cores and four Cortex-A55 cores, with a capacity of 8GB of LPDDR4 RAM and 32GB of eMMC storage.

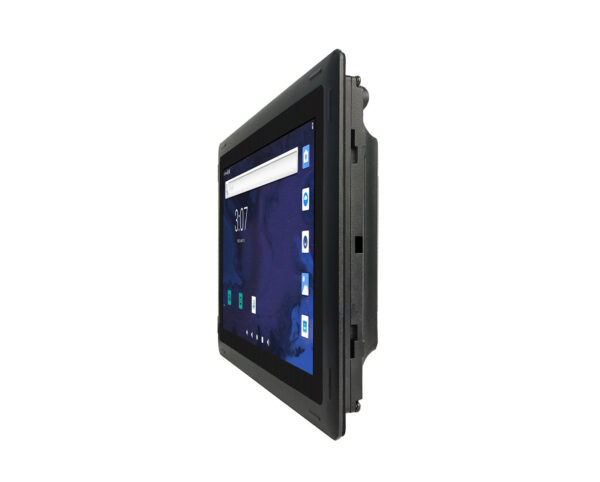

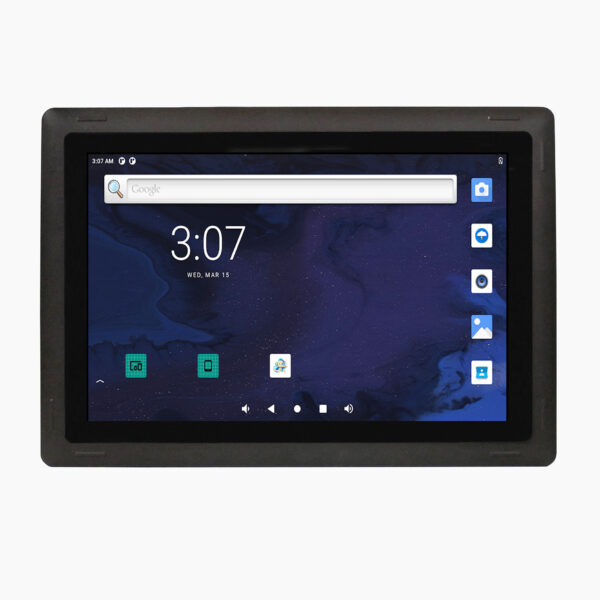

The device also has a 10.1” capacitive multi-touch display with a resolution of 1280×800 pixels and 400NIT brightness.
It also features double Gigabit Ethernet ports, USB, RS232, RS485 and CAN ports, and multiple I/O options, making them easily integrated into various industrial settings.
| Weight | 2270 g |
|---|---|
| Dimensions | 275.5 × 193.5 × 46.0 mm |
| Net weight | 2000 g |
| CPU | ARM: Rockchip RK3588J |
| CPU Frequency | Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz) |
| GPU | ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding. |
| NPU | Neural network acceleration engine with 6Tops int8, supports Int4/8/16/FP16/BF16/TF32. |
| RAM | 8GB LPDDR4 |
| eMMC | 64GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display size | 10.1″ |
| Display resolution | 1280*800 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| USB | 1x USB Type-C, 2x USB 3.0 HOST |
| CAN | 2 x CAN by default |
| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI 2.0 Out |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | 2 x RS485 at most |
| Ethernet | 1 x RJ45, GbE |
| WiFi/BT | Onboard WiFi |
| 4G | Optional |
| PoE | Not supported |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | (supports optional 24V ignition signal), 15-30V DC |
| Power Consumption | 10.5W max, 6W typical |
| Working Temperature | -20°C ~ 70°C. |
| Current at 15V | 400mA typical, 700mA max |
| OS | Buildroot, Debian |
| Mounting Method | VESA, PANEL |
| Color | Black, Grey |
