PPC-A55-101
$293
- Description
- Additional information
Description

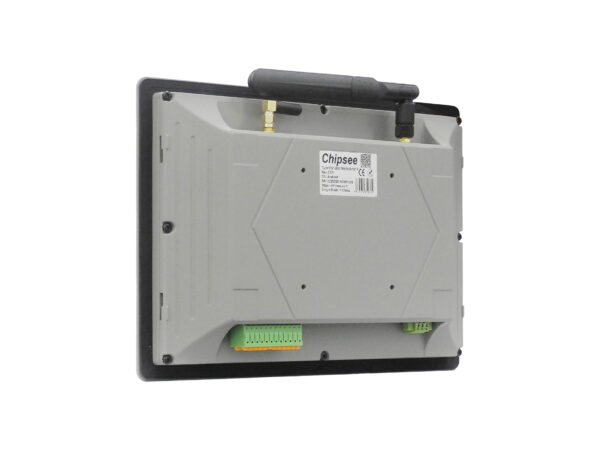

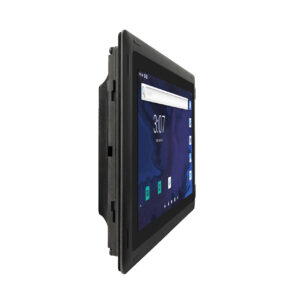

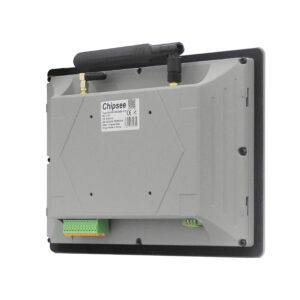

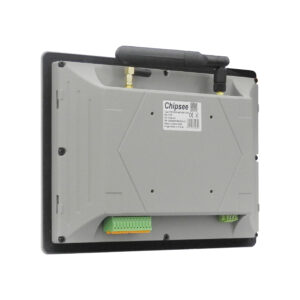

The PPC-A55-101 is a 10.1” industrial panel PC powered by the Rockchip RK3568.
Additional information
| Weight | 2.3 kg |
|---|---|
| Dimensions | 27.55 × 19.35 × 4.6 cm |
- Description
- Specification
- Documents

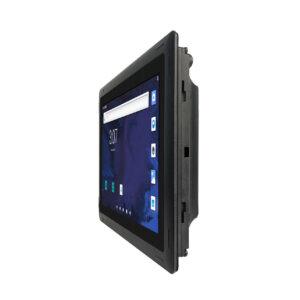

The PPC-A55-101 is a full-featured, rugged industrial computer designed and certified for industrial usage. It is ready to deploy industrial applications based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor.

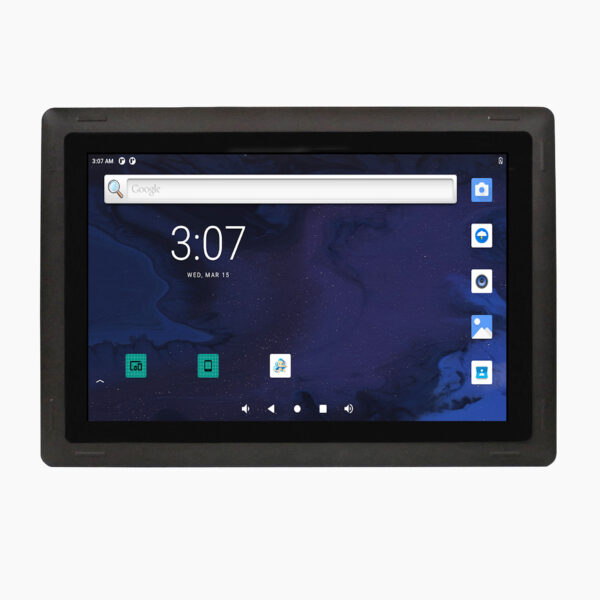

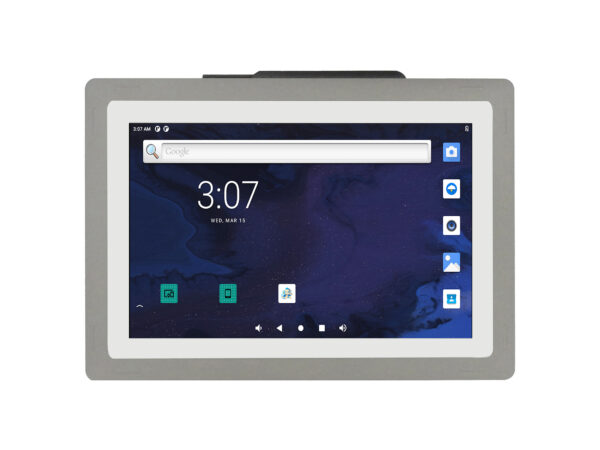

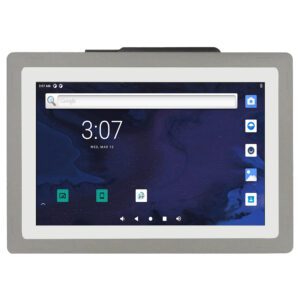

The PPC-A55-101 has a 10-point capacitive touch screen with a 1280×800 resolution and 400 NIT brightness. The screen offers stable and accurate control over the device and great image clarity.

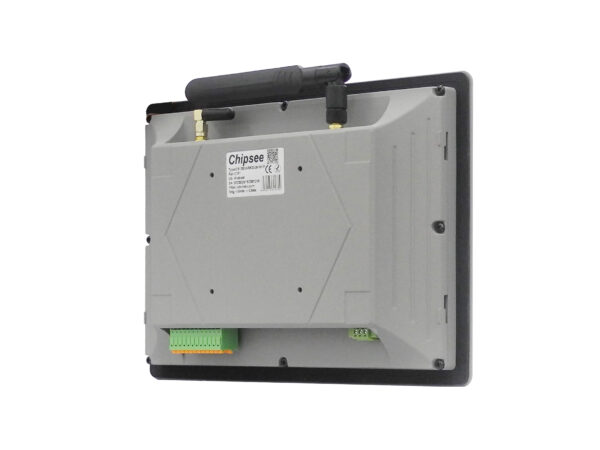

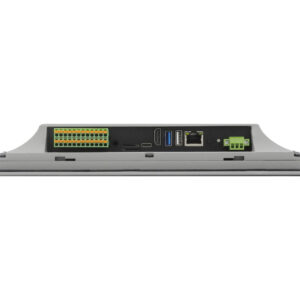

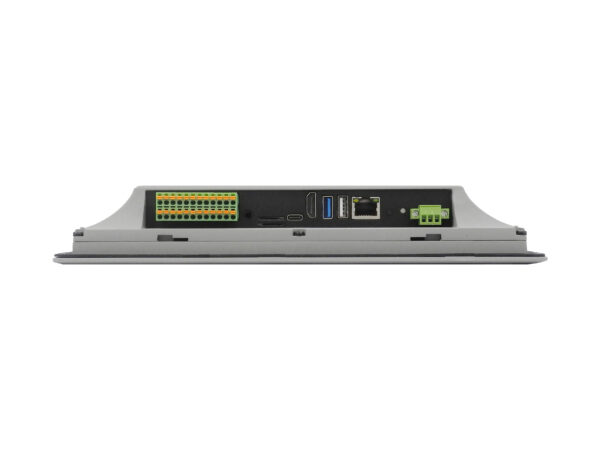

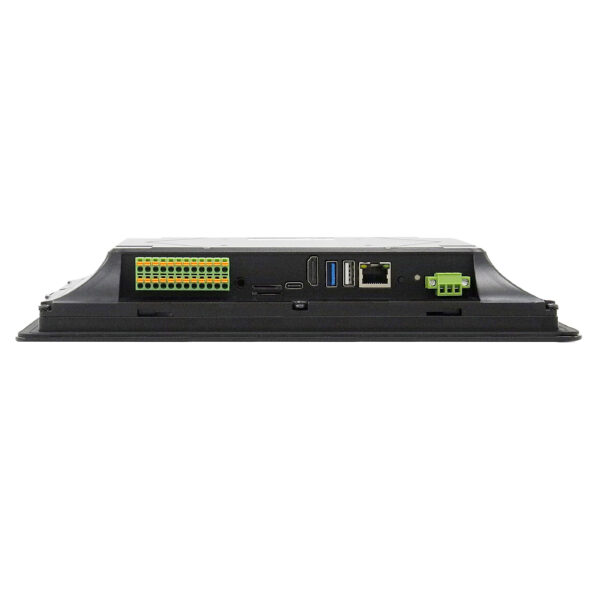

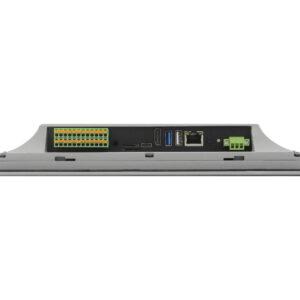

There are various connectivity options such as USB, LAN, HDMI, RS232, RS485, CAN and GPIO. The PPC-A55-101 has 6 x UART channels in total. The default configuration is 4 x RS232 and 2 x RS485, and 1 debug port. The default settings can be changed. WiFi/BT and 4G/LTE modules are optional.

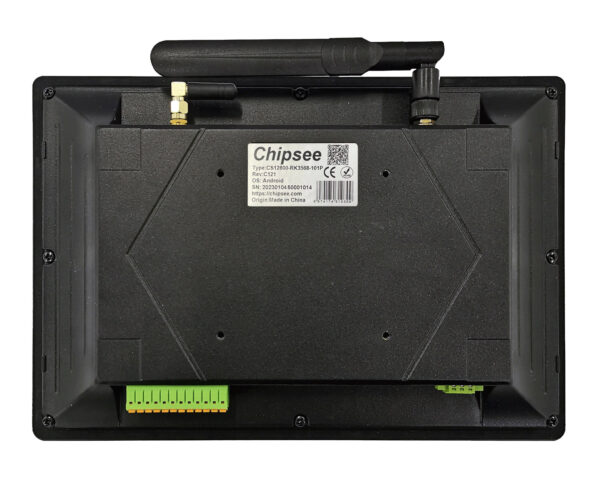

The PPC-A55-101 supports panel and 75mm VESA mounting methods.

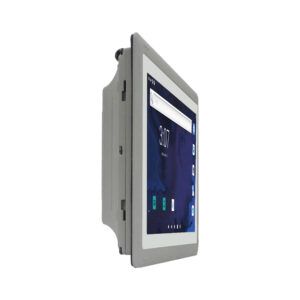

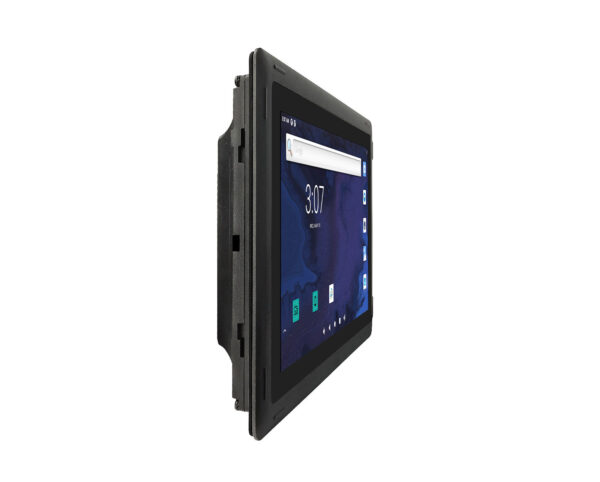

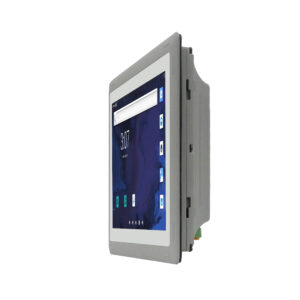

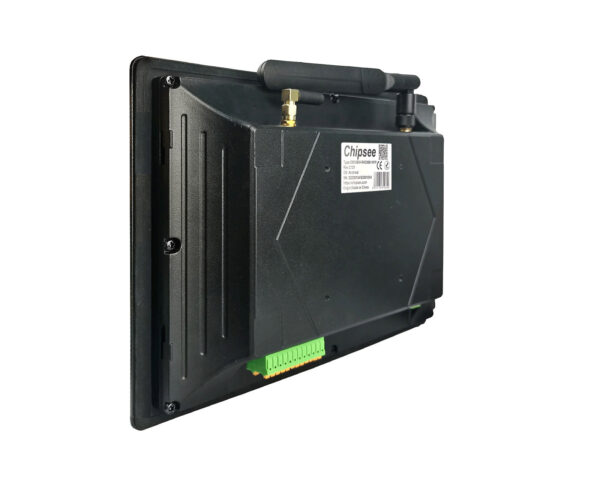

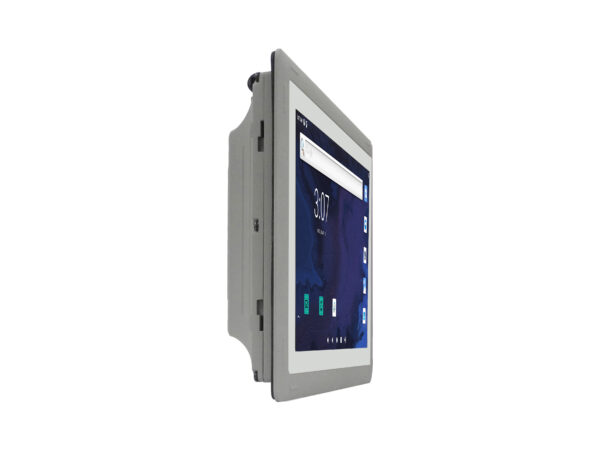

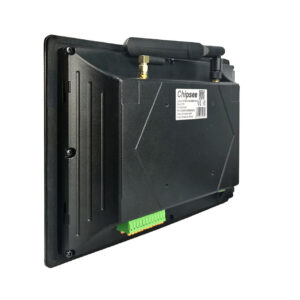

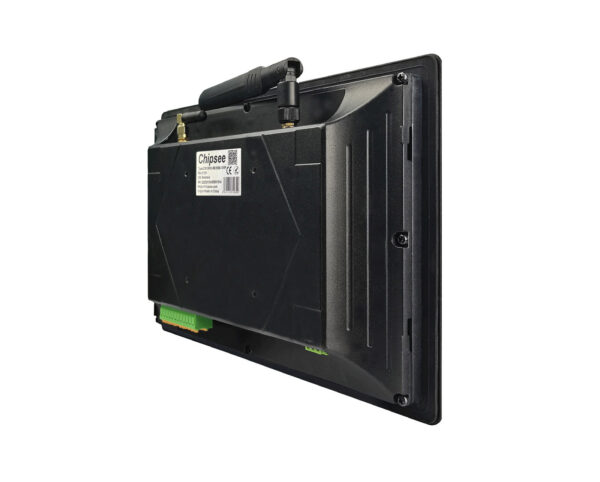

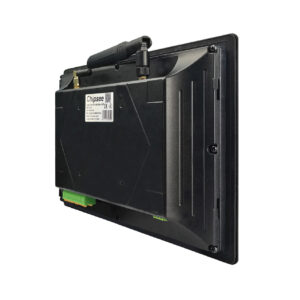

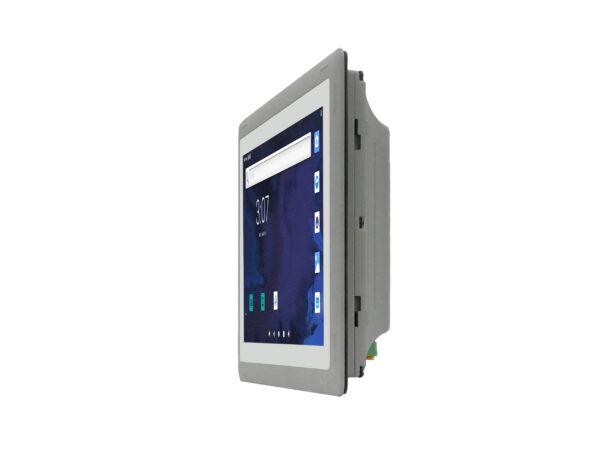

The metal enclosure is available in two colours: black and grey.
| Weight | 2300 g |
|---|---|
| Dimensions | 275.5 × 193.5 × 46 mm |
| Net weight | 1300 g |
| Form-factor | Panel |
| CPU | ARM: Rockchip RK3568 |
| CPU Frequency | Quad Cortex A55, 2.0GHz |
| DDR4 | 4GB |
| eMMC | 32GB |
| Storage | External TF card slot, and internal M.2 NVMe connector for SSD card |
| Display Size (inch.) | 10.1″ |
| Display resolution | 1280*800 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Yes |
| 4G | Optional |
| Ethernet | 1x RJ45, 1 Gbps |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| USB | 1x USB Type-C, 1 x USB 3.0 HOST, 1x USB 2.0 HOST |
| RTC | High Accuracy RTC, can work 1 week after power off |
| GPIO | 8 Channels, 4 Input, 4 Output |
| RS485 | 2x RS485 |
| RS232 | 4x RS232 |
| CAN | 2x CAN |
| OS | Buildroot, Android, Debian |
| Power Input | 12~36V DC |
| Power Consumption | 9.6W |
| Current at 12V | 800mA Max at 12V |
| Working Temperature | -20°C ~ 70°C. |
| Mounting Method | Panel Mounting & VESA |
| GTIN | 6974174310811 |
