PPC-A55-050
$168
- Description
- Additional information
Description
The PPC-A55-050 is a 5.0” industrial panel PC powered by the Rockchip RK3568.
Additional information
| Weight | 0.60 kg |
|---|---|
| Dimensions | 13.85 × 8.47 × 2.71 cm |
- Description
- Specification
- Documents
The PPC-A55-050 is a full-featured, rugged industrial computer designed and certified for industrial usage. It is ready to deploy industrial applications based on the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor.

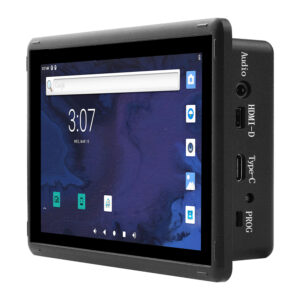

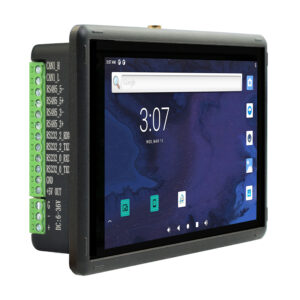

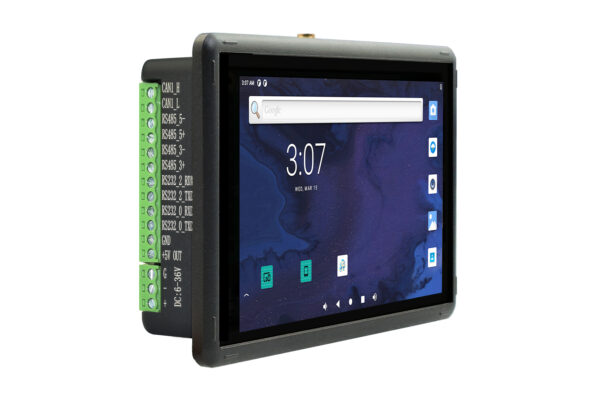

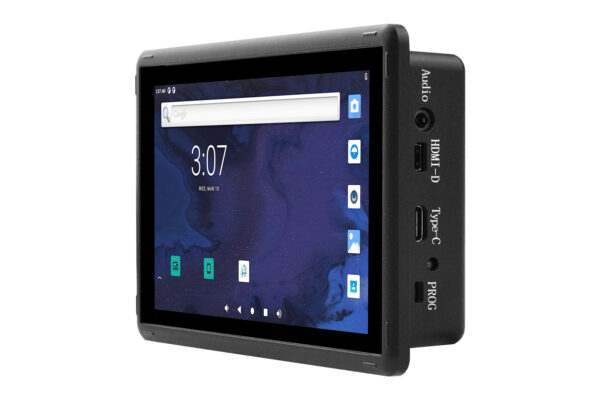

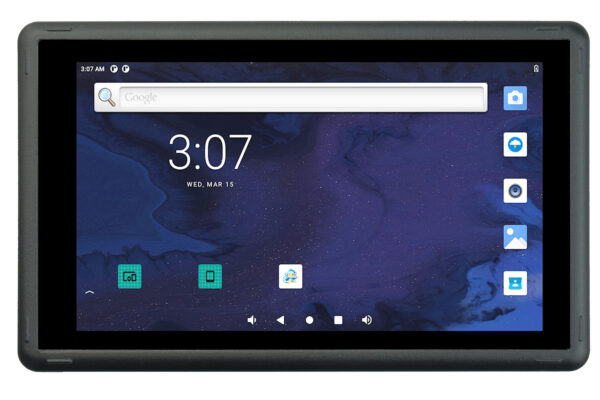

The PPC-A55-050 has a 5-point capacitive touch screen with a 1280×720 resolution and 400 NIT brightness. The screen offers stable and accurate control over the device and great image clarity.

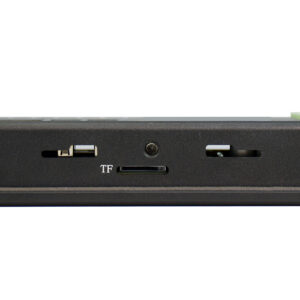

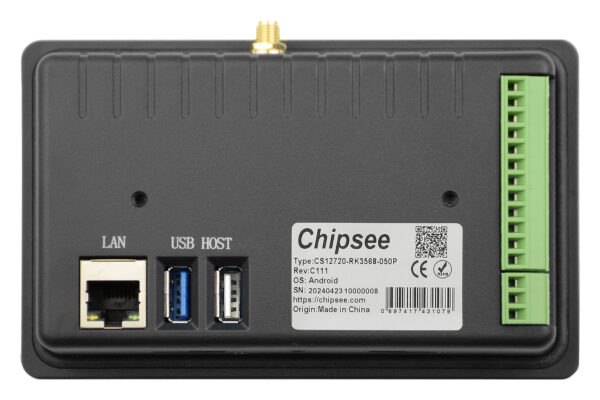

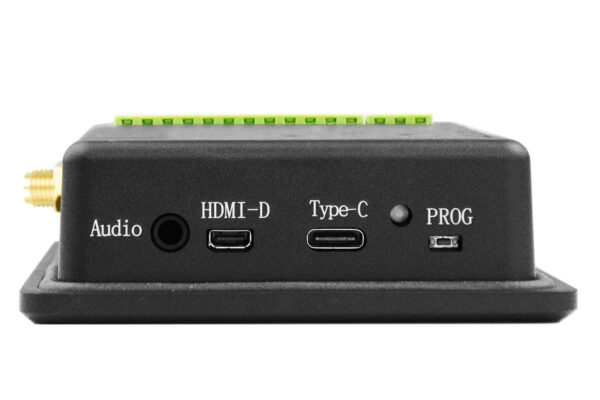

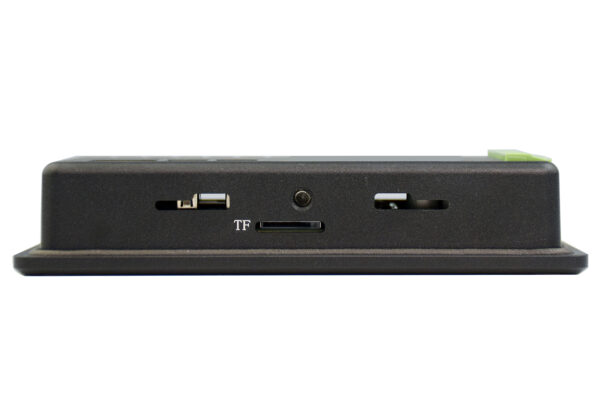

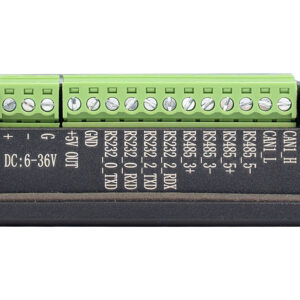

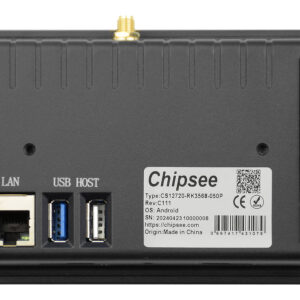

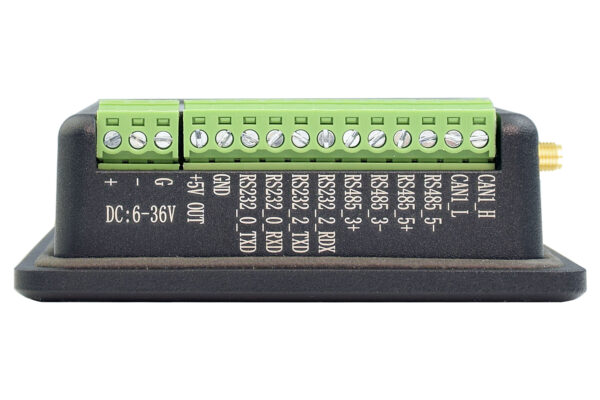

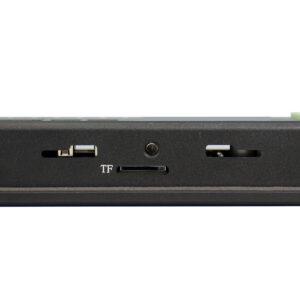

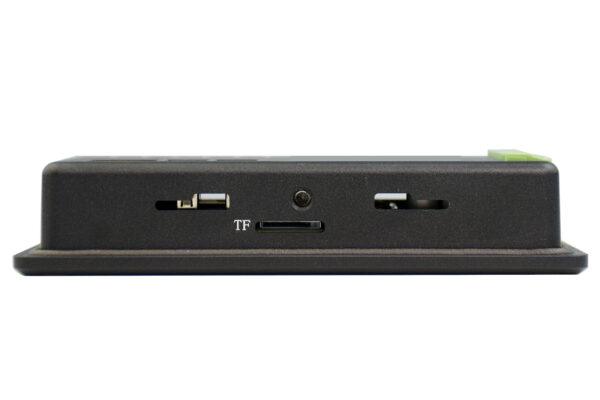

There is a TF card interface designed for storage expansion and various connectivity options such as USB, LAN, HDMI, RS232, RS485, and CAN. The PPC-A55-050 has 4 x UART channels in total. The default configuration is 2 x RS232 and 2 x RS485, and 1 debug port. The default settings can be changed. GPIO and 4G/LTE module are not supported due to the limited space on the board.
The PPC-CM4-050 supports panel and 75mm VESA mounting methods.
| Weight | 5300 g |
|---|---|
| Dimensions | 400 × 256 × 52.5 mm |
| Net weight | 4500 g |
| Form-factor | Panel |
| CPU | ARM: NXP i.MX8MP |
| CPU Frequency | NPU 2.3TOPS, Quad Cortex A53, 1.6GHz |
| RAM | LPDDR4 4GB |
| eMMC | 32GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display size | 15.6″ |
| Display resolution | 1920*1080 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Onboard WiFi |
| 4G | Optional |
| PoE | Optional |
| USB | 1x USB 3.0 HOST, 1x USB Type-C, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232. |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| HDMI | 1 x HDMI OUT |
| GPIO | Not supported. |
| Ethernet | 1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional) |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| OS | Yocto |
| Power Input | 12V to 36V |
| Power Consumption | 9.6W, 23.4W Max |
| Current at 12V | 1.95A Max |
| Working Temperature | -30°C ~ +85°C |
| Mounting Method | VESA, PANEL |
