PPC-A53-133
$423
- Description
Description

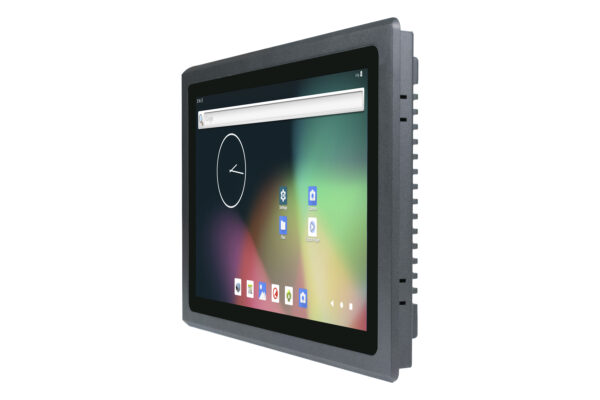

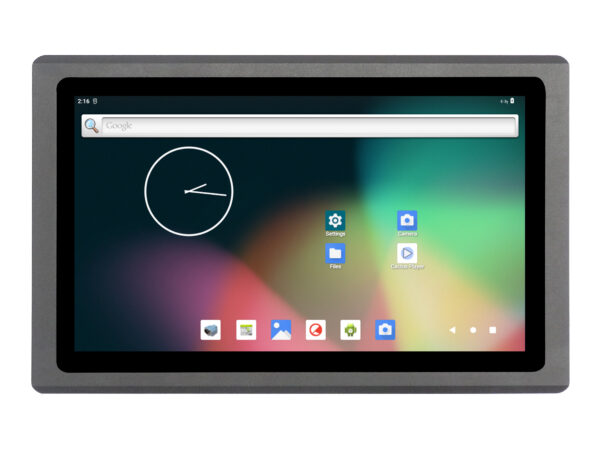

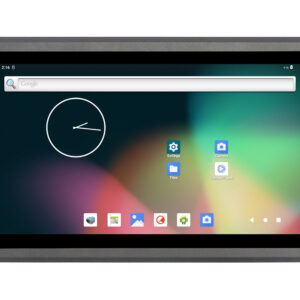

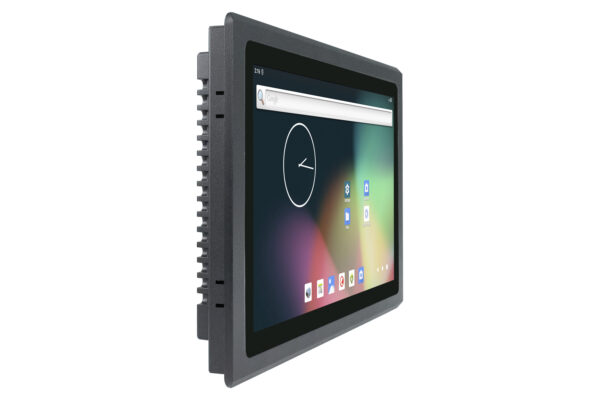

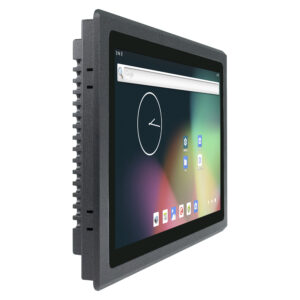

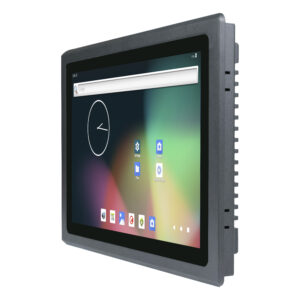

The PPC-A53-133 is a high-quality industrial panel PC based on the powerful i.MX8MP System on Chip (SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core Cortex®-A53 1.6GHz processor. It features a 13.3” screen with a 10-point capacitive touch screen with 1920 x 1080 pixel resolution and 400 NIT brightness.
The PPC-A53-133 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, HDMI, and GPIO.
Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.
- Description
- Specification
- Documents
The PPC-A53-133 is a high-quality industrial panel PC. It is ready to deploy industrial applications based on the NXP i.MX8MP that integrates Quad(4)-core Cortex-A53 (1.6GHz). It features a 10-point capacitive touch screen with a 1920 x 1080 resolution and 400 NIT brightness. WiFi/BT is integrated while the 4G/LTE module is optional.

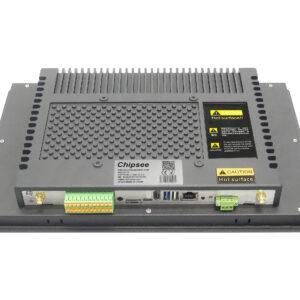

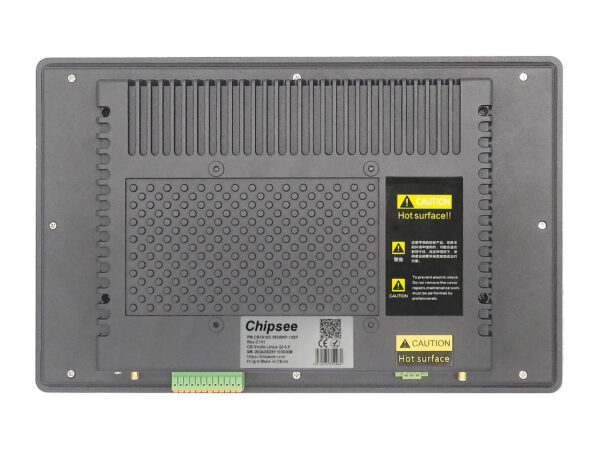

The PPC-A53-133 supports panel and 75mm VESA mounting methods.

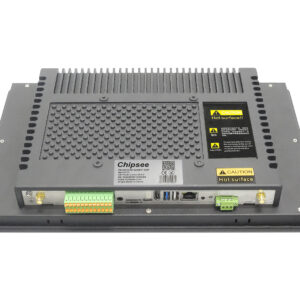

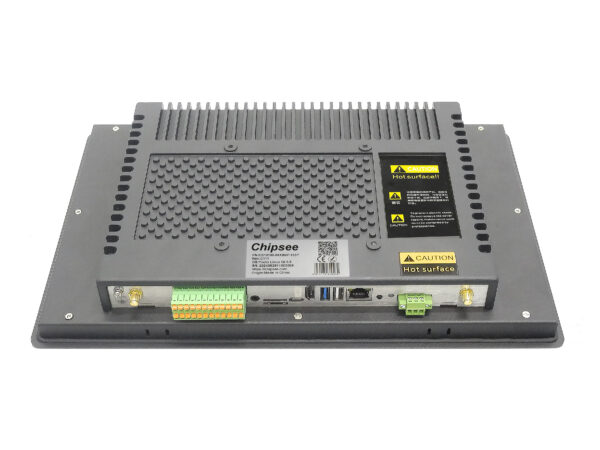

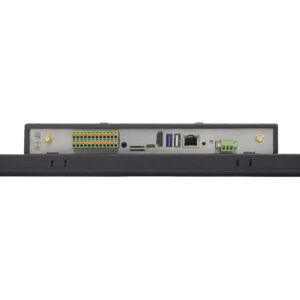

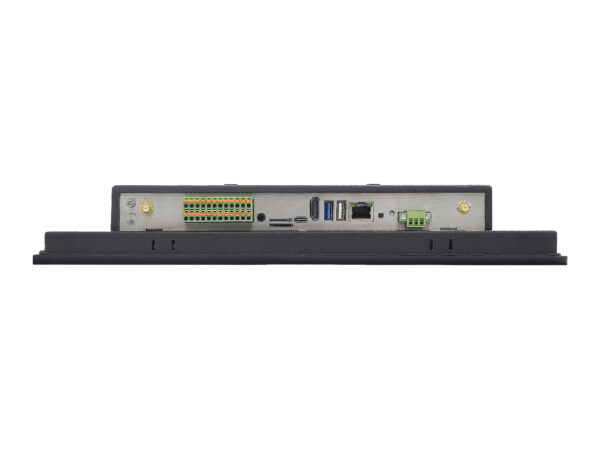

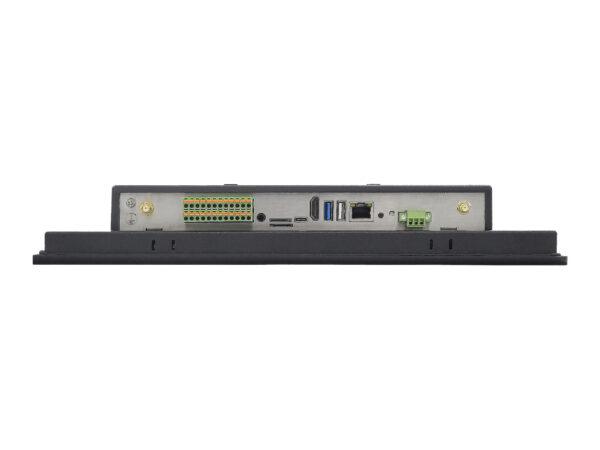

Various connectivity options include USB, LAN, HDMI, RS232, RS485, CAN, and GPIO. The default configuration is 2 x RS232 and 2 x RS485, including 1 RS232 debug port. There are 2 x CAN that can be configured to RS232 (USB UART). The default settings can be changed.
| Weight | 4500 g |
|---|---|
| Dimensions | 355 × 225 × 55 mm |
| Net weight | 3000 g |
| Form-factor | Panel |
| CPU | ARM: NXP i.MX8MP |
| CPU Frequency | NPU 2.3TOPS, Quad Cortex A53, 1.6GHz |
| RAM | LPDDR4 4GB |
| eMMC | 32GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display size | 13.3″ |
| Display resolution | 1920*1080 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Onboard WiFi |
| 4G | Optional |
| PoE | Optional |
| USB | 1x USB 3.0 HOST, 1x USB Type-C, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232. |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional) |
| HDMI | 1 x HDMI OUT |
| GPIO | 8 Channels, 4 Input, 4 Output |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| OS | Yocto |
| Power Input | 12V to 36V |
| Power Consumption | 9.6W, 15W Max |
| Current at 12V | 1.25A Max |
| Working Temperature | 0°C to +80°C |
| Mounting Method | VESA, PANEL |
