PPC-A53-101
$318
- Description
Description
At the heart of the PPC-A53-101 resides the i.MX8MP System on Chip (SoC), driven by the NXP i.MX8MP low-power processor. This advanced processor ensures efficient, reliable performance, making it perfect for demanding industrial environments.

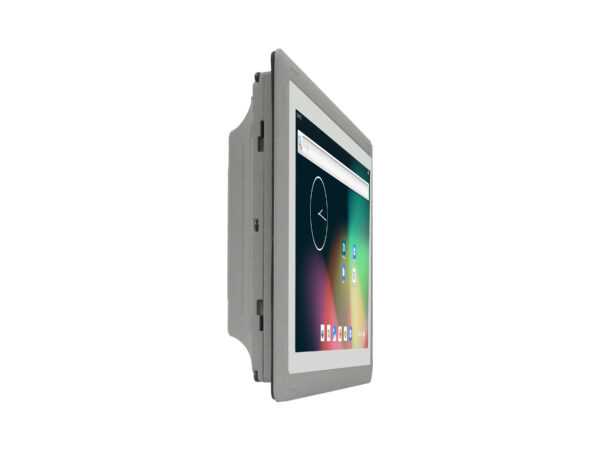

Designed for versatility, this panel PC supports various connectivity options, it features a compact 10.1” screen, and a 10-point capacitive touch interface, delivering clear and vibrant visuals.

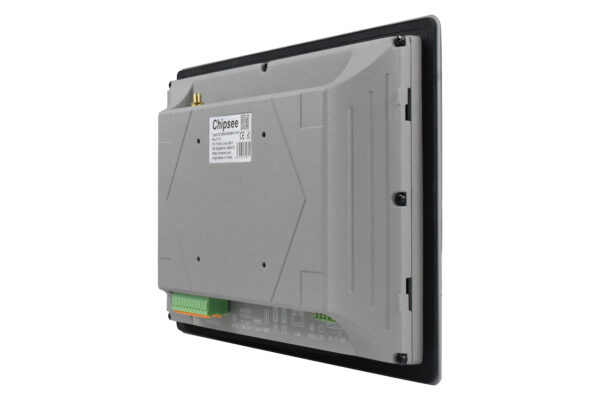

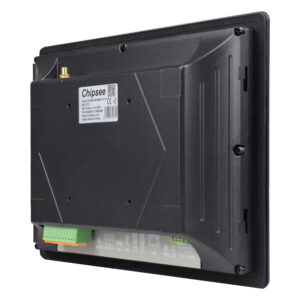

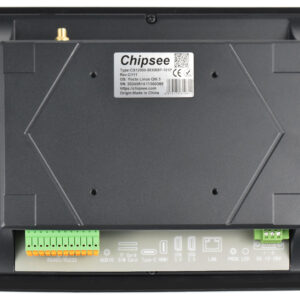

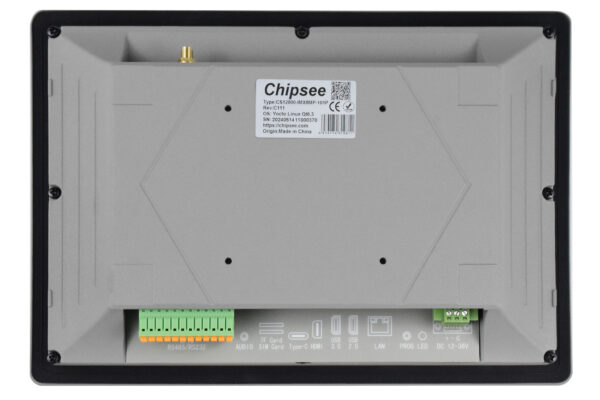

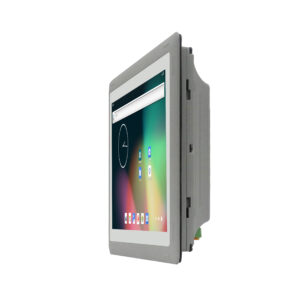

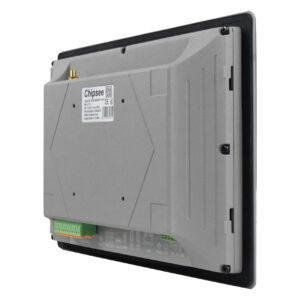

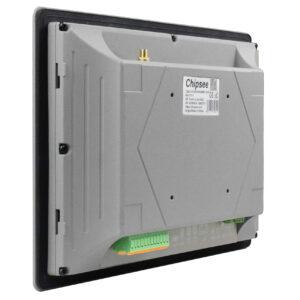

Housed in a sleek metal enclosure with IP65-rated protection on the front panel, the PPC-A53-101 is engineered to withstand the rigors of intensive industrial use, providing a reliable human-machine interface.

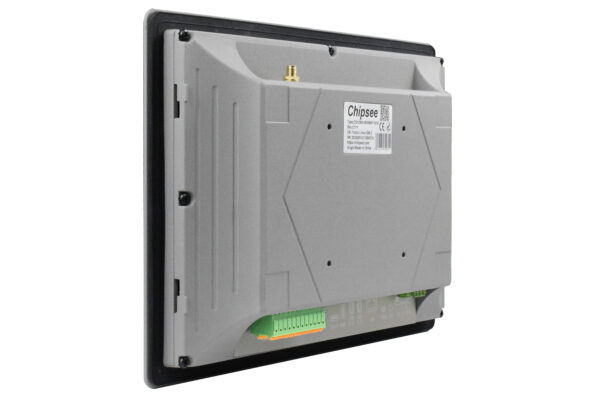

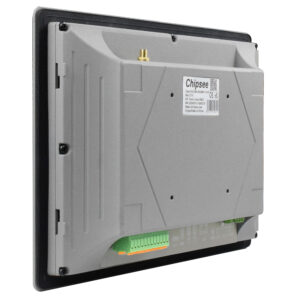

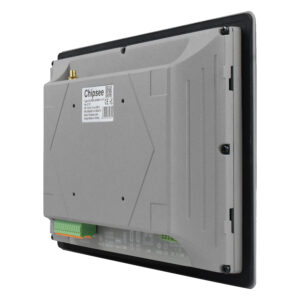

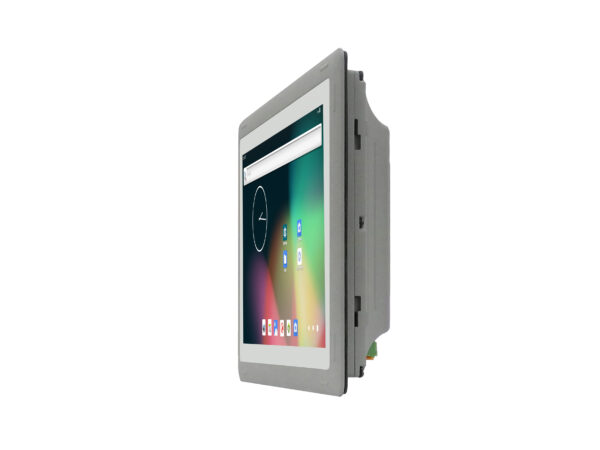

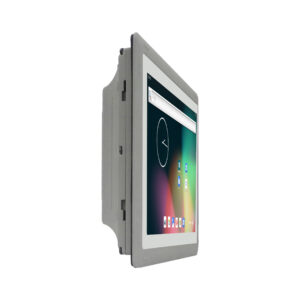

The PPC-A53-101 comes in two different colors, Black and Gray and it’s part of a comprehensive line of industrial panel PCs designed to meet modern industrial applications’ rigorous demands.
- Description
- Specification
- Documents
The PPC-A53-101 (CS12800-IMX8MP-101P) is a high-quality industrial panel PC based on the i.MX8MP System on Chip (SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core Cortex®-A53 1.6GHz processor.

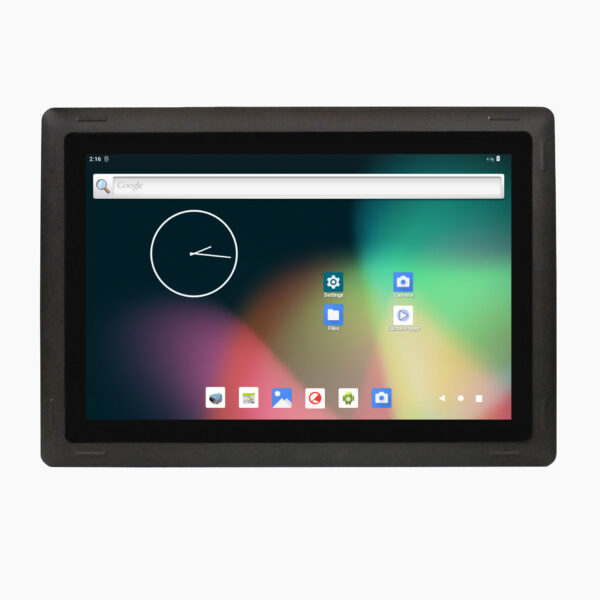

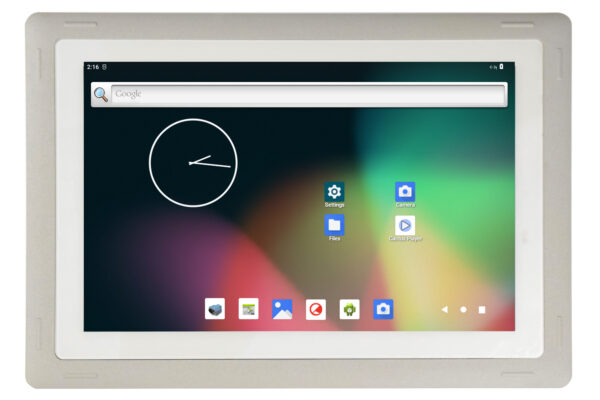

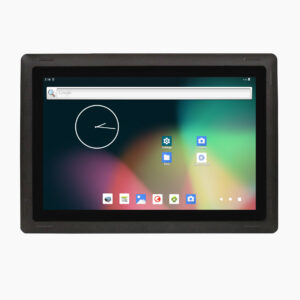

It features a 10.1” screen with a 10-point capacitive touch screen with 1280×800 pixel resolution and 400 NIT brightness.

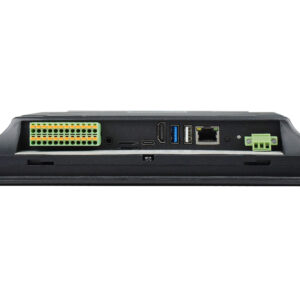

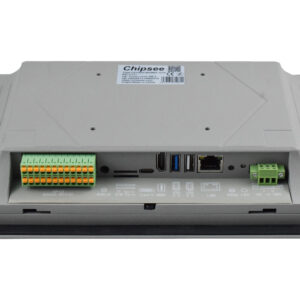

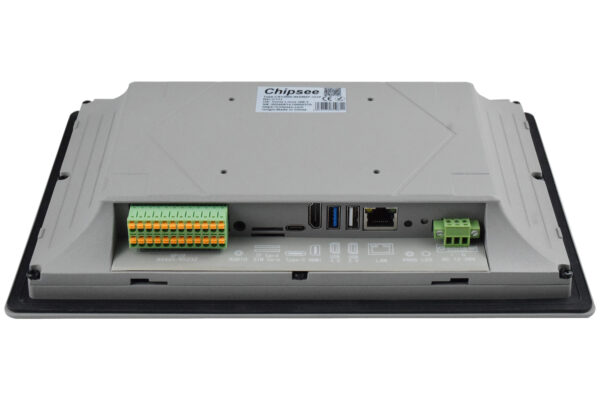

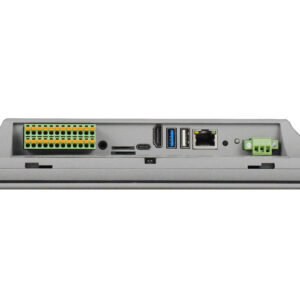

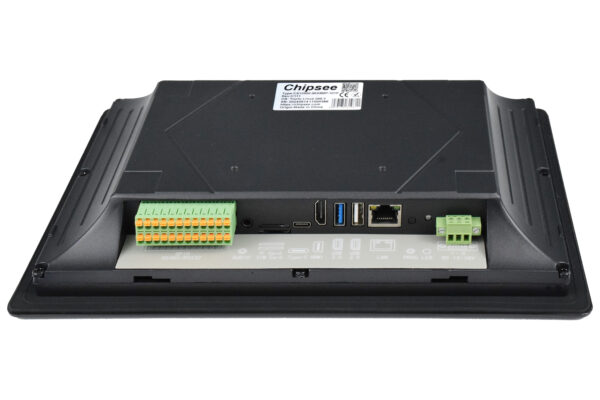

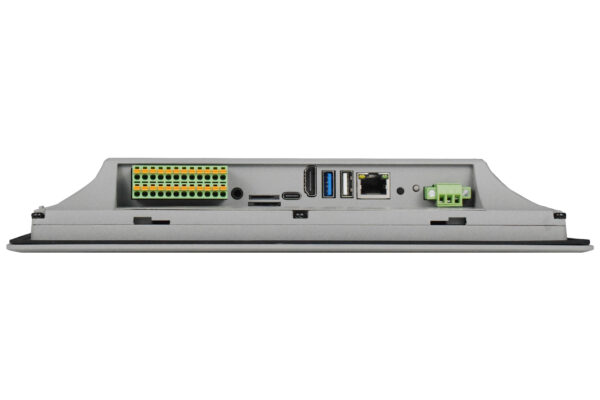

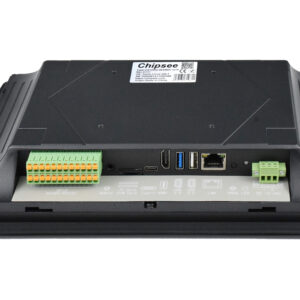

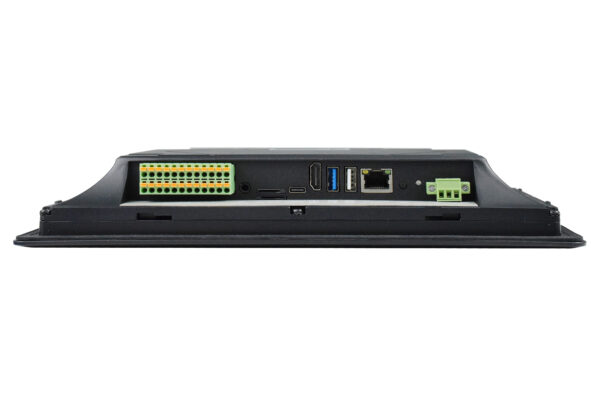

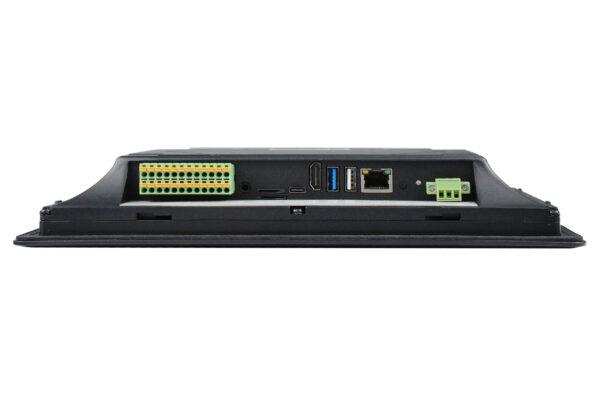

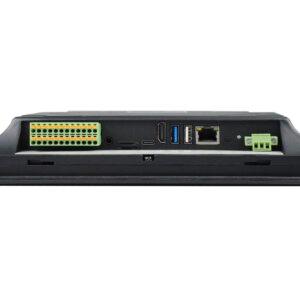

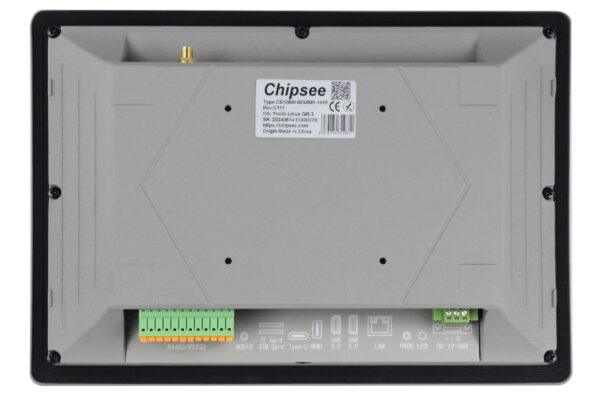

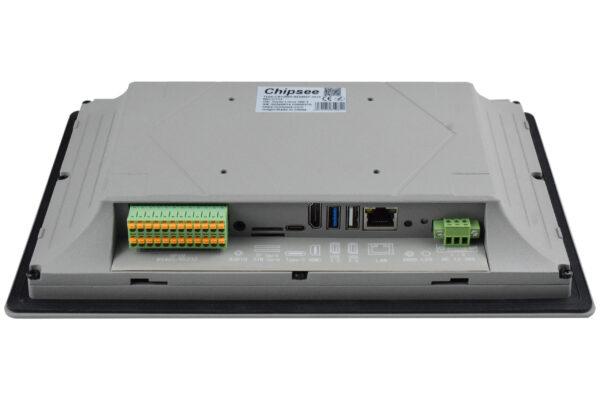

The PPC-A53-101 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, HDMI, and GPIO.
| Weight | 2700 g |
|---|---|
| Dimensions | 275.5 × 193.5 × 46.0 mm |
| Net weight | 1300 g |
| CPU Frequency | NPU 2.3TOPS, Quad Cortex A53, 1.6GHz |
| Form-factor | Panel |
| CPU | ARM: NXP i.MX8MP |
| eMMC | 32GB |
| RAM | LPDDR4 4GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display size | 10.1″ |
| Display resolution | 1280*800 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Onboard WiFi |
| 4G | Optional |
| PoE | Yes |
| USB | 1 x USB 3.0 HOST, 1 x USB Type-C, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232. |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 1 x RJ45, GbE |
| HDMI | 1 x HDMI OUT |
| GPIO | 8 Channels, 4 Input, 4 Output |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| OS | Yocto |
| Power Input | 12V to 36V |
| Power Consumption | Max brightness, max CPU load: 11.64W; Min brightness, idle: 6.96W. |
| Current at 12V | Max brightness, max CPU load: 0.97A at 12V; Min brightness, idle: 0.58A at 12V. |
| Working Temperature | -20°C ~ 70°C. |
| Mounting Method | VESA, PANEL |
