PPC-A53-070
$257
- Description
- Additional information
Description

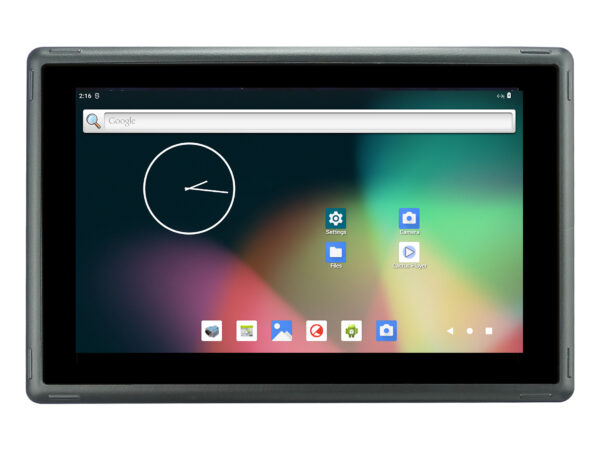

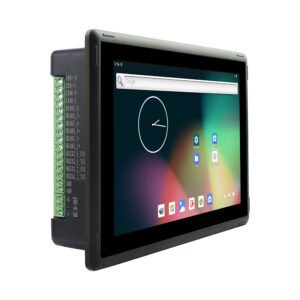

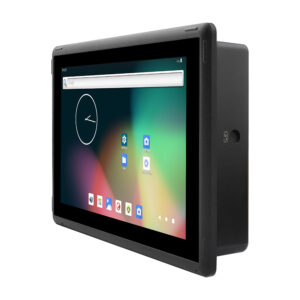

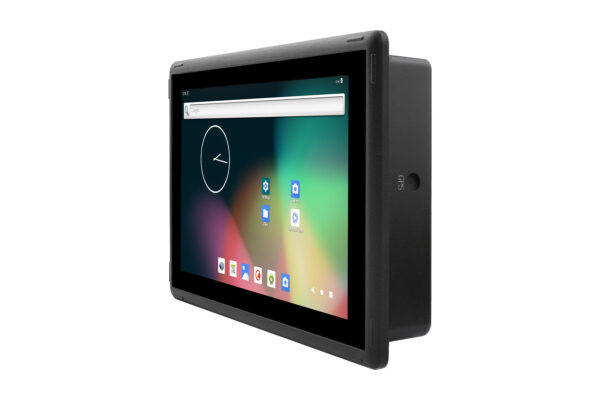

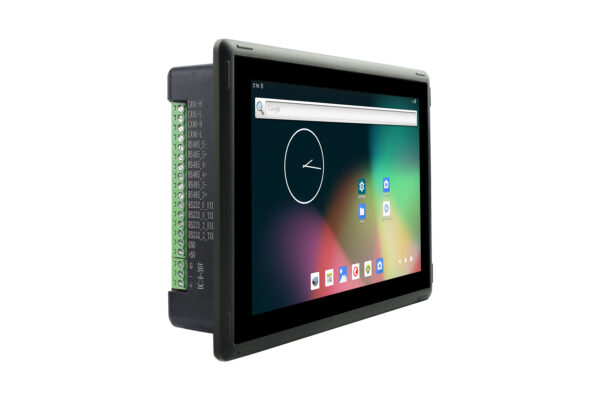

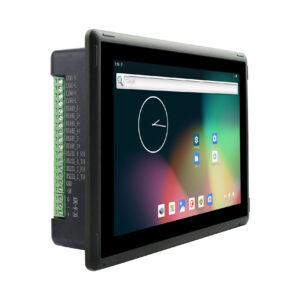

The PPC-A53-070 (CS10600-IMX8MP-070P) is a high-quality industrial panel PC based on the powerful i.MX8MP System on Chip (SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core Cortex®-A53 1.6GHz processor. It features a 7.0” screen with a 5-point capacitive touch screen with 1024×600 pixel resolution and 400 NIT brightness.
The PPC-A53-070 provides a broad range of connectivity options, such as RS232, RS485, CAN, Ethernet, USB, HDMI and GPIO.
Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface.
Additional information
| Weight | 1 kg |
|---|
- Description
- Specification
- Documents
The PPC-A53-070 is a high-quality industrial panel PC. It is ready to deploy industrial applications based on the NXP i.MX8MP that integrates Quad(4)-core Cortex-A53 (1.6GHz). It features a 5-point capacitive touch screen with a 1024×600 resolution and 400 NIT brightness. WiFi/BT is integrated while the 4G/LTE module is optional.

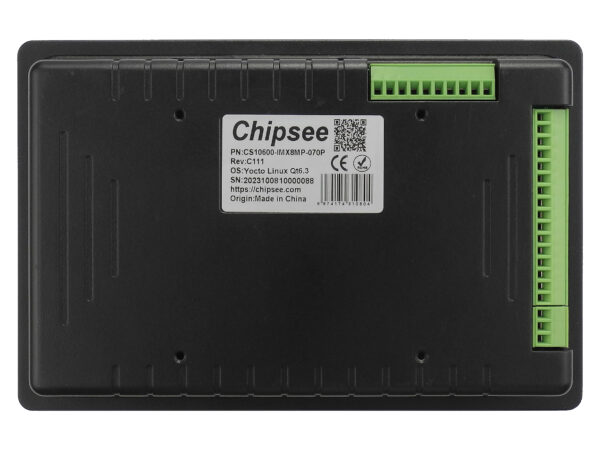

The PPC-A53-070 supports panel and 75mm VESA mounting methods.

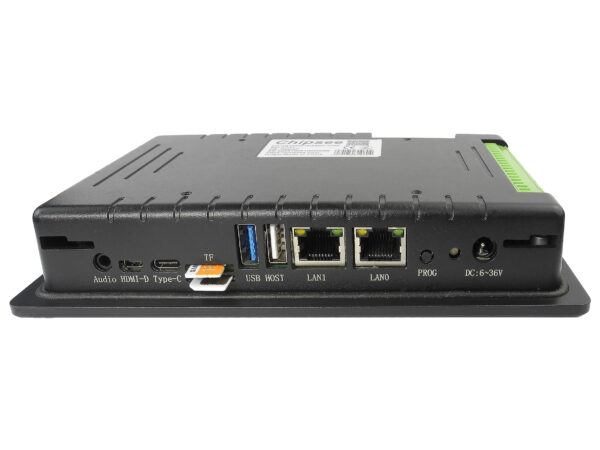

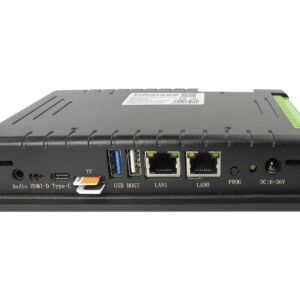

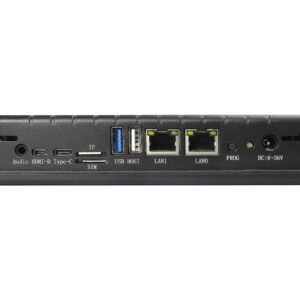

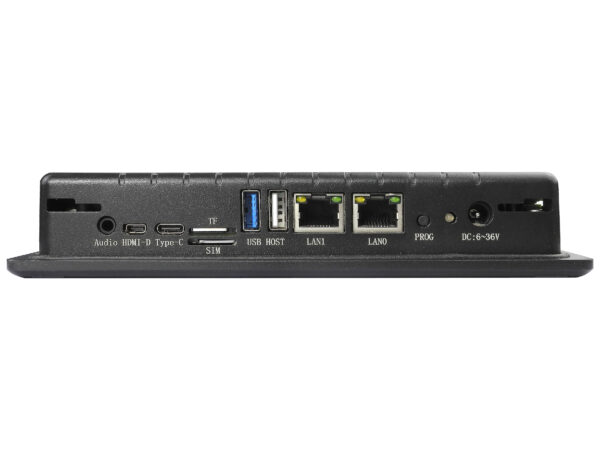

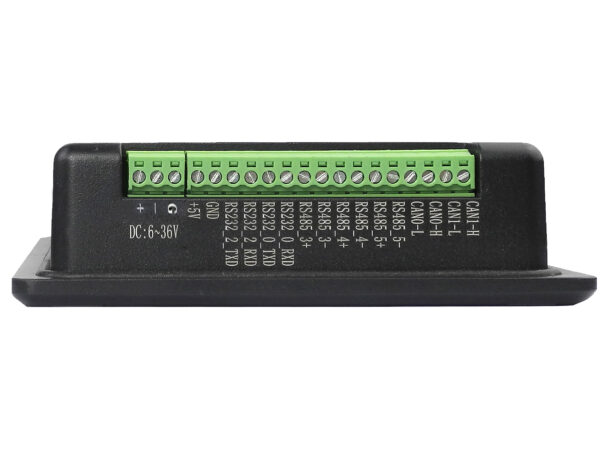

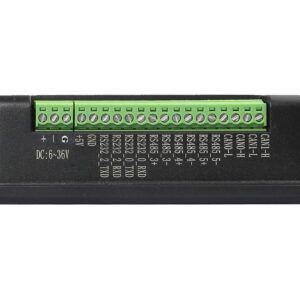

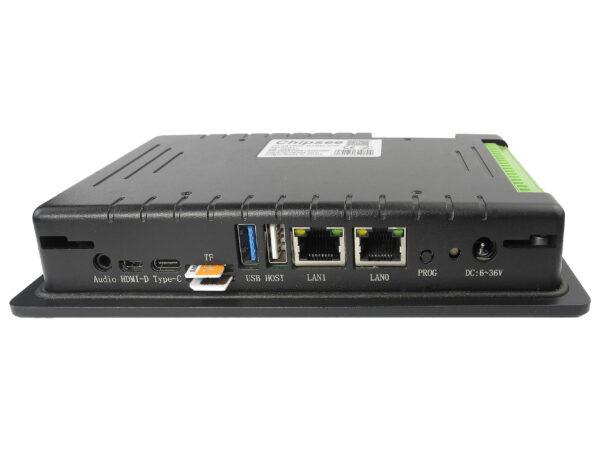

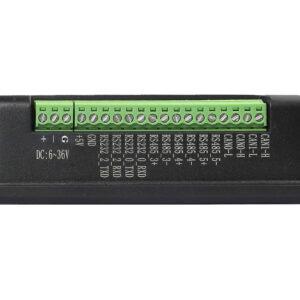

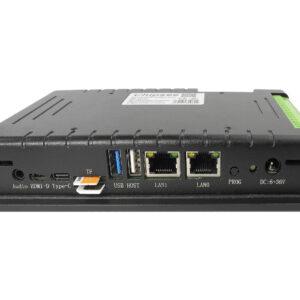

Various connectivity options include USB, LAN, HDMI, RS232, RS485, CAN, and GPIO. The PPC-A53-070 has 3 x CPU UART, 2 x USB UART, 6 x UART channels at most. The default configuration is 2 x RS232 and 3 x RS485, including 1 RS232 debug port. There is 1 x CAN that can be configured to RS232 (USB UART). The default settings can be changed.
| Weight | 700 g |
|---|---|
| Dimensions | 188.05 × 123.11 × 33.20 mm |
| Net weight | 610 g |
| Form-factor | Panel |
| CPU | ARM: NXP i.MX8MP |
| CPU Frequency | NPU 2.3TOPS, Quad Cortex A53, 1.6GHz |
| DDR4 | 4GB |
| eMMC | 32GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display Size (inch.) | 7.0″ |
| Display resolution | 1024*600 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |
| WiFi/BT | Onboard |
| 4G | Optional |
| Ethernet | 2 x RJ45, GbE, including 1 x optional Power over Ethernet (PoE) port |
| HDMI | 1 x HDMI-D (Micro HDMI) OUT |

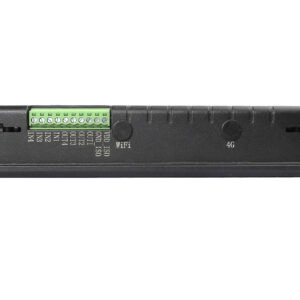

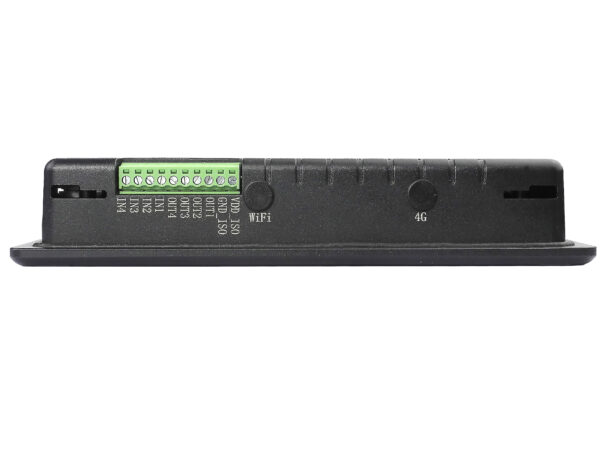

| GPIO | 8 Channels, 4 Input, 4 Output |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | 3x RS485 |
| USB | 1x USB Type-C, 1 x USB 3.0 HOST, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default. Optionally, 1 x CAN can be configured to RS232. |
| PoE | Optional |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| OS | Yocto |
| Power Input | 6~36V DC |
| Power Consumption | 7.2W Max, 5.4W Idle (Maximum brightness) |
| Current at 12V | 600mA Max at 12V, 450mA Idle at 12V |
| Working Temperature | -10°C to +60°C |
| Mounting Method | Panel Mounting & VESA |
