AIO-CM4-156
$223
- Description
- Additional information
Description

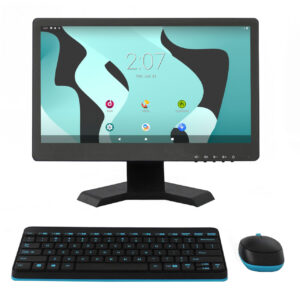

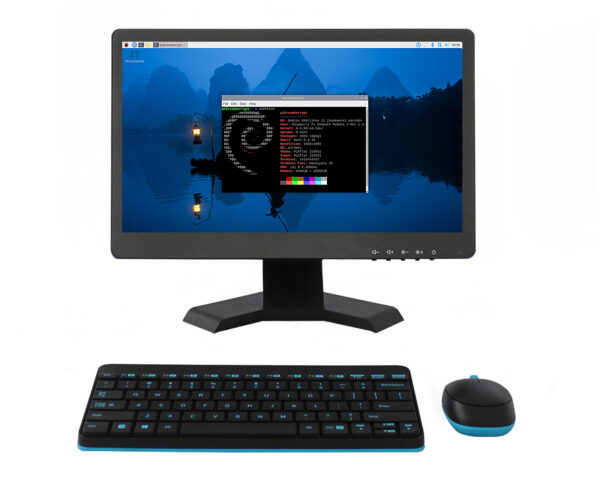

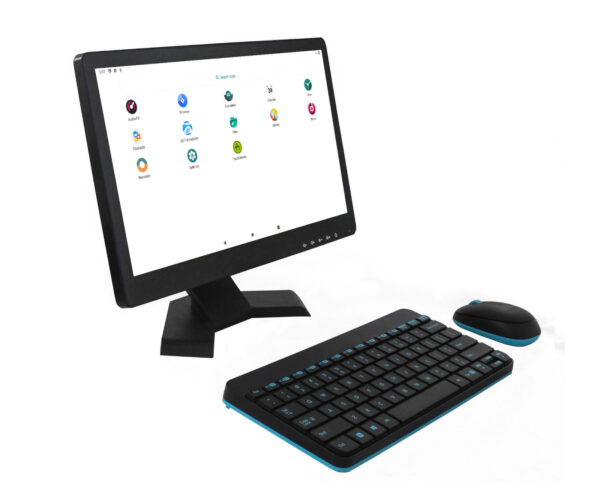

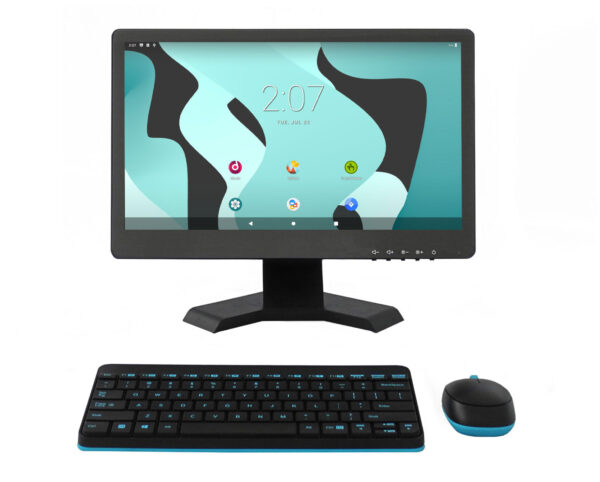

AIO-CM4-156 is a 15.6” All-In-One desktop computer based on Raspberry Pi CM4.
Additional information
| Weight | 4.3 kg |
|---|---|
| Dimensions | 37.4 × 30.3 × 12.3 cm |
- Description
- Specification
- Documents
The AIO-CM4-156 is an all-in-one desktop computer, certified for industrial usage, ready to deploy desktop and industrial applications based on the Raspberry Pi Compute Module 4.
It gives you the advantage of numerous open-source communities dedicated to the Raspberry Pi, ever-growing GitHub repositories, and endless examples online. All the resources are at the tip of your fingers, and now, you can use them for your next desktop or industrial solution.
The AIO-CM4-156, which comes with a Raspberry Pi CM4 of your choice, features a 15.6-inch IPS display with a 2mm protective armored glass, capacitive touchscreen, and optional internal 250GB Sandisk NVMe SSD.

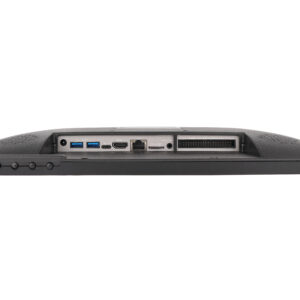

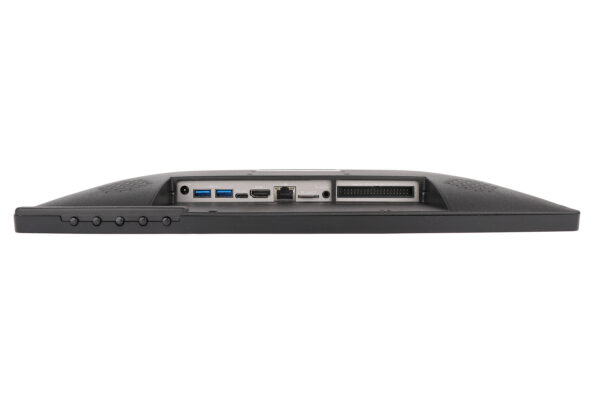

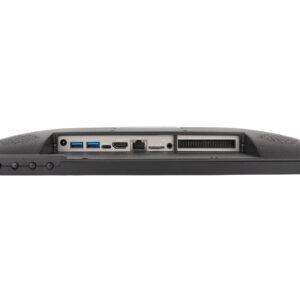

It offers all the standard Raspberry Pi ports: two USB 3.0 ports, one USB-C OTG port, 1GB Ethernet port, HDMI output for an additional monitor, micro SD slot, audio out, internal stereo speakers, and the full I/O 40-pin header.
The AIO-CM4-156 is 100% compatible with any Raspberry PI OS.
| Weight | 4300 g |
|---|---|
| Dimensions | 374 × 303 × 123 mm |
| Net weight | 1600 g |
| Dimensions Without Stand | 374 x 238 x 33 mm |
| Form-factor | All-In-One |
| CPU | ARM: Raspberry Pi CM4 |
| Storage | TF card slot for boot. Internal M.2 NVMe connector for SSD card. |
| Micro SD card socket | For use only with CM4 Lite modules |
| Display size | 15.6″ |
| Display resolution | 1920*1080 |
| Brightness (NIT) | 350 NIT |
| Touch Screen | Capacitive |
| USB | 2 x USB 3.0 Host connector, 1Type-C USB Slave connector. |

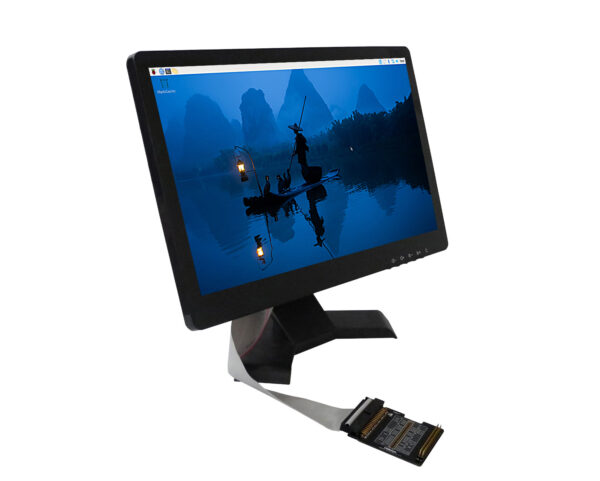

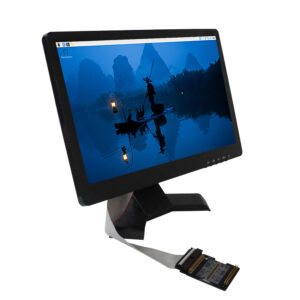

| GPIO/Wiegand | Raspberry Pi 40-pin GPIO connector. |
| HAT connector | Standard Raspberry Pi 40-way HAT connector. |
| Ethernet | 1x RJ45, 1 Gbps |
| Camera | Camera on the front panel, NOT mounted by default |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| RTC | High accuracy internal RTC (keep track of time one week after power off) |
| OS | Android, Raspberry Pi OS |
| Power Input | 12V DC |
| Power Consumption | 10W |
| Current @ 12V | 700 mA max |
| Working Temperature | 0℃~50℃ |
| Plastic Case Color | Black |
| GTIN | 6974174310590 |
