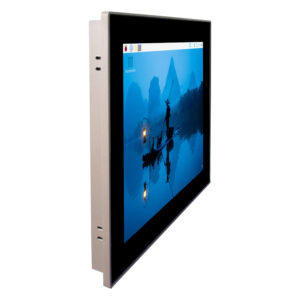

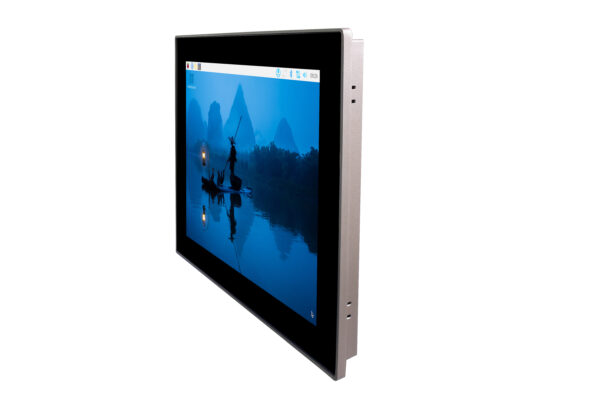

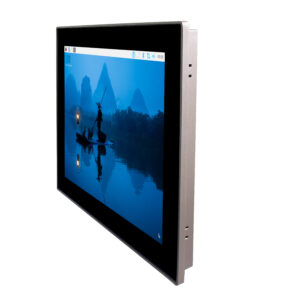

PPC-CM5-150
$378
- Description
- Additional information
Description
The PPC-CM5-150 is a 15.0” industrial PC built on the powerful Raspberry Pi® Compute Module 5, featuring the Quad Cortex®-A76 processor with a speed of 2.4GHz.

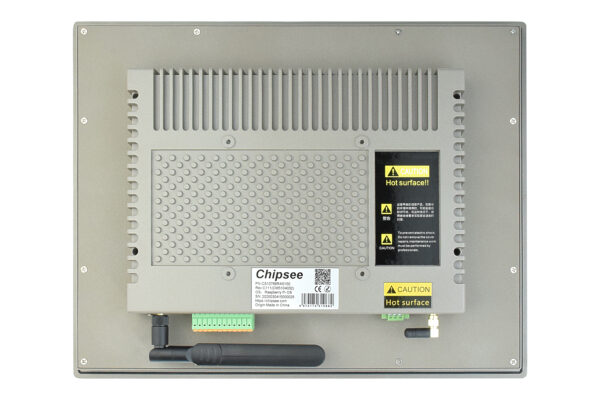

The PPC-CM5-150 features a durable metal casing designed for easy installation using either panel or VESA mounting methods. With its powerful performance, edge AI capabilities, and integration into the vast Raspberry Pi ecosystem, this panel PC delivers a versatile computing solution that meets the needs of engineers and developers across various industries.
The Raspberry Pi® Compute Module 5 (CM5) is available in multiple configurations. With the PPC-CM5-150 industrial PC, you can choose the CM5 module that best meets your requirements during the ordering process.
Additional information
| Weight | 8.08 kg |
|---|---|
| Dimensions | 37.6 × 30 × 5.7 cm |
- Description
- Specification
- Documents
The PPC-CM5-150 is designed for industrial applications based on the Raspberry Pi Compute Module 5 (CM5). It features a quad-core Cortex-A76 processor running at 2.4GHz and supports up to 8GB of LPDDR4X-4267 SDRAM.

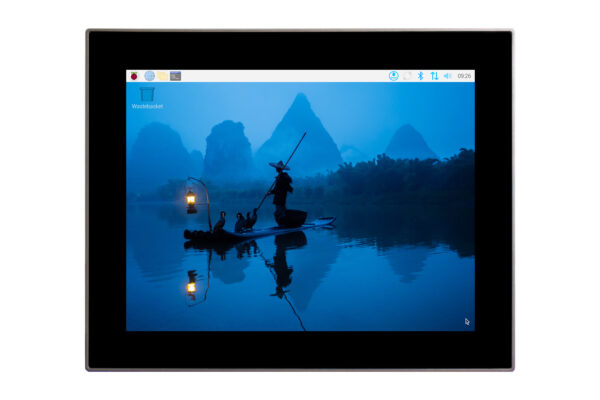

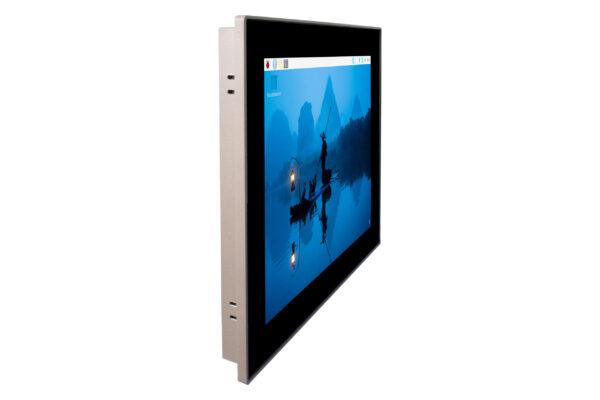

The 15.0” display is IP65-rated featuring a ten-point capacitive touch with 1mm Armored Glass for durability. With a 1024×768 pixel resolution, 400 NIT brightness and excellent image clarity, it ensures reliable operation even in challenging environments, resisting dust and water.

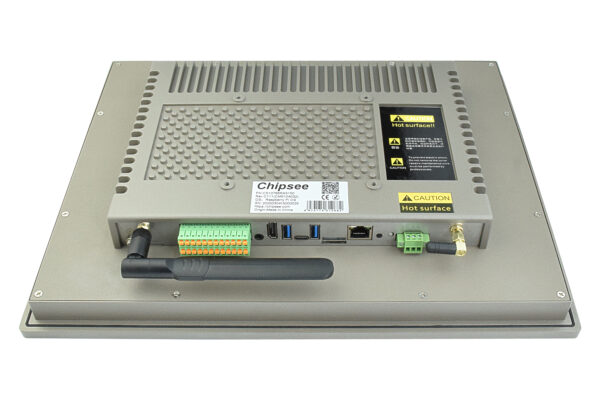

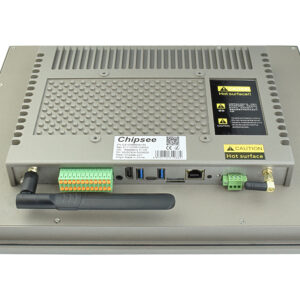

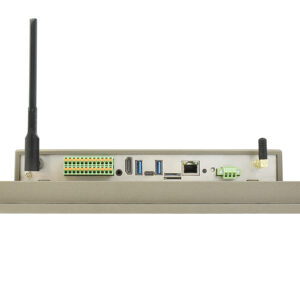

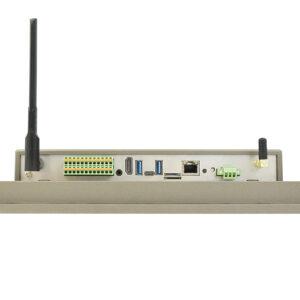

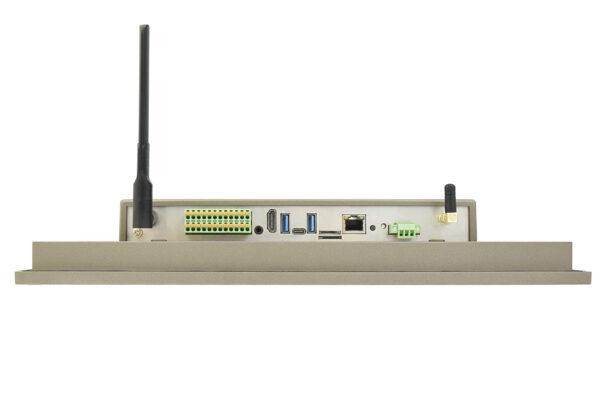

The PPC-CM5-150 offers excellent connectivity featuring USB 3.0, a USB-C OTG port, Gigabit-Ethernet, and an extension connector supporting RS232, RS485, CAN and GPIO. The 4G/LTE module is optional and can be added at the time of ordering.
| Weight | 8080 g |
|---|---|
| Dimensions | 376 × 300 × 57 mm |
| Net weight | 4500 g |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |
| Storage | Supports 1 x TF Card |
| Display size | 15.0″ |
| Display resolution | 1024*768 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive + Armored Glass |
| USB | 1 x USB Type-C OTG, 2 x USB 3.0 type-A Host |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI 2.0 Out, can be driven up to 4K 60FPS |
| RS232 | Default 2 x RS232, up to 4 x RS232 |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 1 x Giga LAN |
| I2C | Not supported. |
| WiFi/BT | Depends on CM5 |
| 4G | Optional |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| ZigBee | N/A |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | 15-30V DC |
| Power Consumption | 12W typical, 16.5W max |
| Working Temperature | -20°C ~ 70°C. |
| Current at 15V | 1100mA max, 800mA typical |
| OS | Raspberry Pi OS |
| Mounting Method | VESA, PANEL |
