PPC-CM5-070-D
$194
- Description
- Additional information
Description

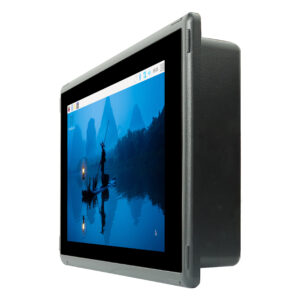

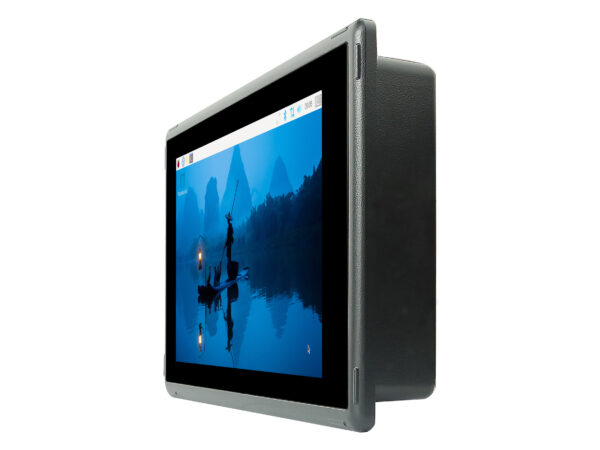

The PPC-CM5-070-D is a 7.0” industrial PC built on the powerful Raspberry Pi® Compute Module 5, featuring the Quad Cortex®-A76 processor with a speed of 2.4GHz.
Its form factor and metal enclosure with IP65 protection on the front panel make it ideal for intensive industrial applications that require a human-machine interface. With its powerful performance, edge AI capabilities, and integration into the vast Raspberry Pi ecosystem, this panel PC delivers a versatile computing solution that meets the needs of engineers and developers across various industries.
The PPC-CM5-070-D comes with a Raspberry Pi Compute Module 5 of your choice. You can choose it while ordering, along with the optional modules.
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 18.805 × 12.31 × 3.32 cm |
- Description
- Specification

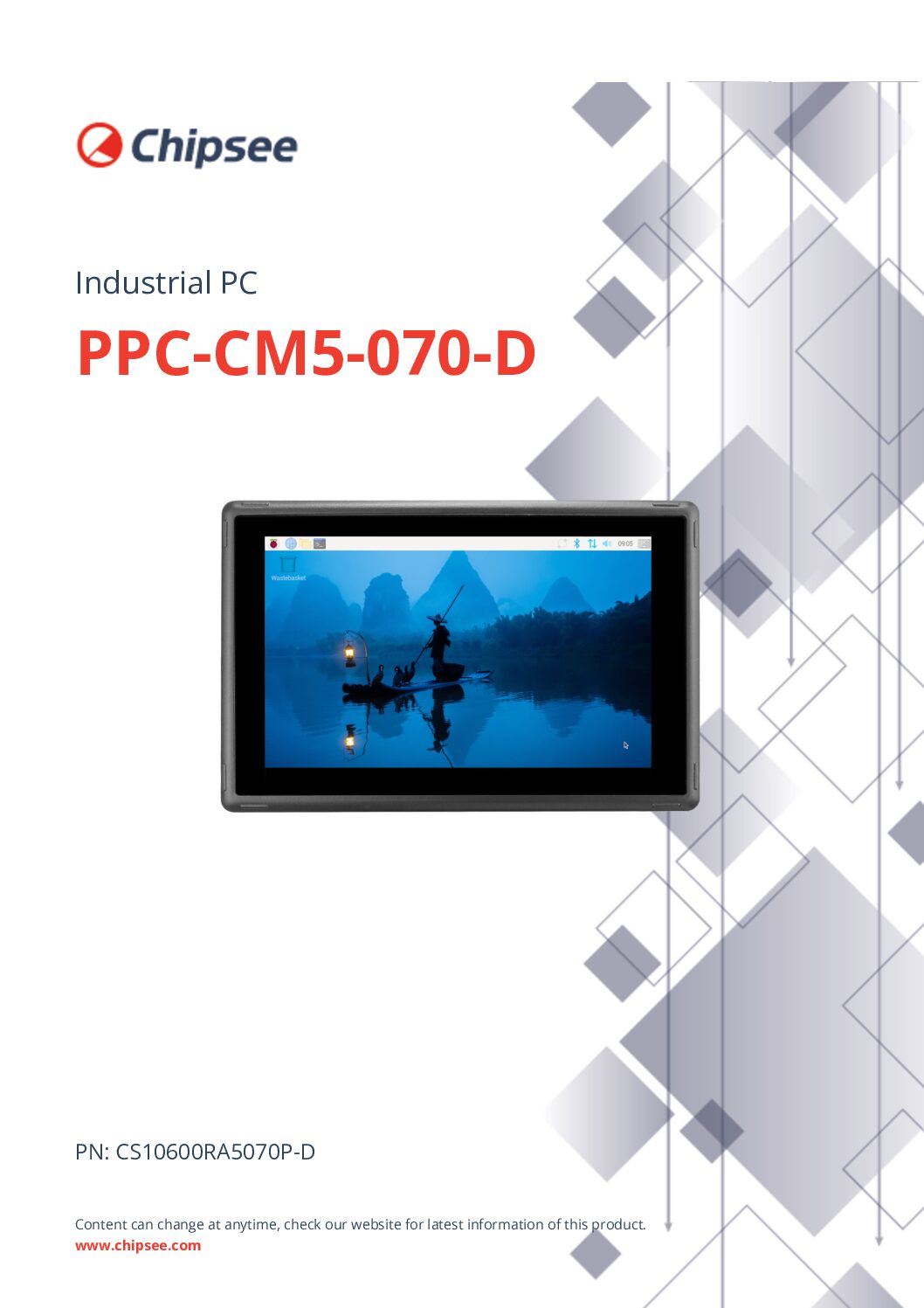

- Documents
The PPC-CM5-070-D is a powerful industrial solution that combines advanced hardware and robust connectivity options to meet the demands of various industrial projects.
The Raspberry Pi Compute Module 5 (CM5), featuring a quad-core Cortex-A76 processor running at 2.4GHz and up to 8GB of LPDDR4X-4267 SDRAM, delivers exceptional performance. It is available in different configurations depending on the size of the DDR4 and eMMC. The PPC-CM5-070-D comes with the CM5 of your choice.

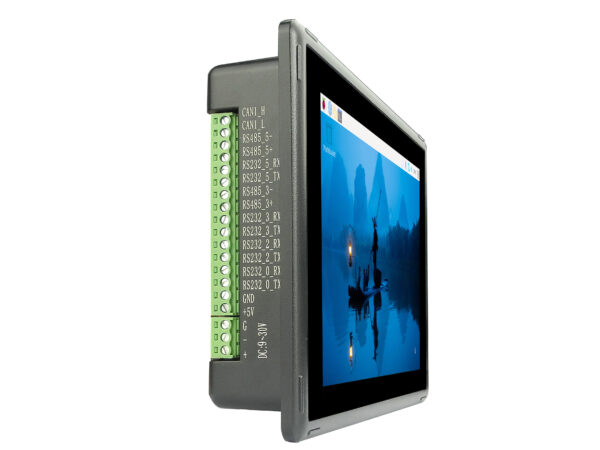

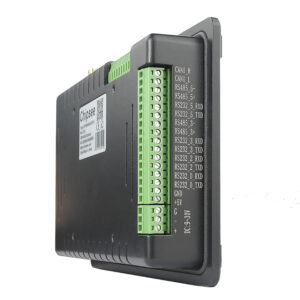

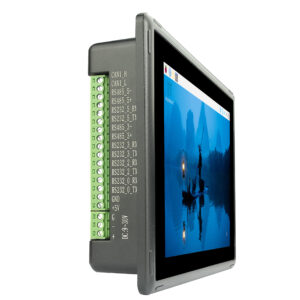

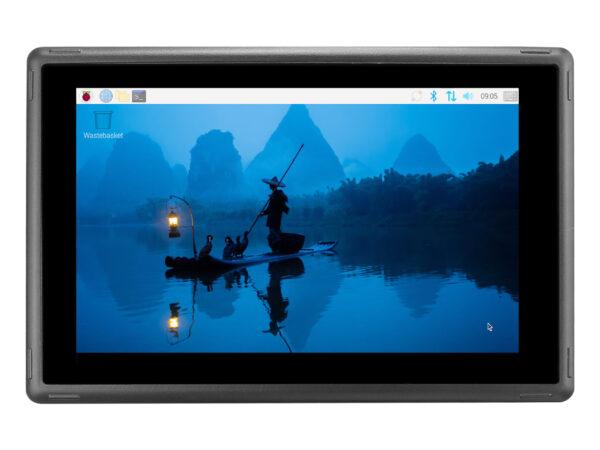

The device supports a wide range of communication protocols, including USB, RS232, RS485, and CAN, enabling easy and versatile integration with various systems. Its 7.0’’ display includes a 5-point capacitive touchscreen protected by armored glass for enhanced durability. Combined with an extended operating temperature range of -10°C to +60°C, the PPC-CM5-070-D ensures reliable performance, even in challenging environments.
The main differences between PPC-CM5-070 and PPC-CM5-070-D are:
1. The suffix -D refers to Dual Giga Ethernet;
2. PPC-CM5-070-D has USB 2.0 Host, while the PPC-CM5-070 has two USB 3.0 Host;

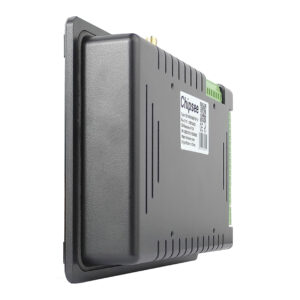

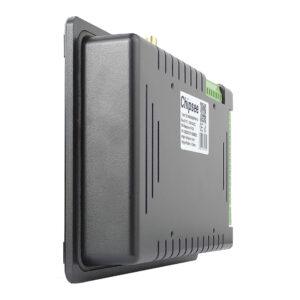

3. PPC-CM5-070-D has a smaller metal case that cannot be open and dismantled;

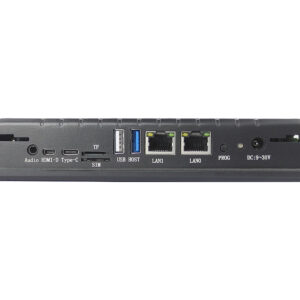

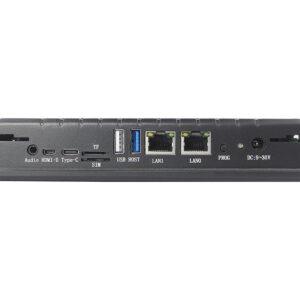

4. The position of the USB and LAN connector is different on these two products;
| Weight | 900 g |
|---|---|
| Dimensions | 188.05 × 123.11 × 33.20 mm |
| Net weight | 700 g |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| PCIe | PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242 socket |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |
| Storage | Supports 1 x TF Card |
| Display size | 7.0″ |
| Display resolution | 1024*600 |
| Brightness (NIT) | 500 NIT |
| Touch Screen | Capacitive |

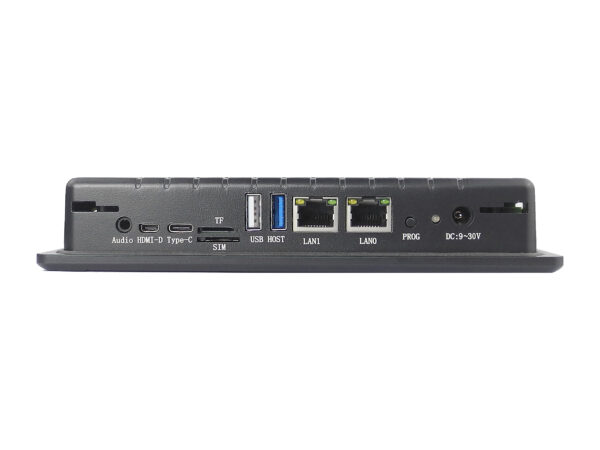

| USB | 1 x USB 2.0 type-A Host, 1 x USB 3.0 type-A Host, 1 x USB Type-C OTG |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |

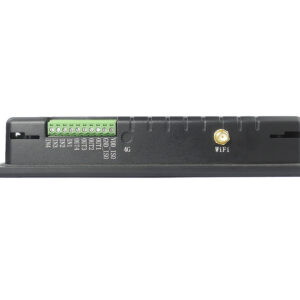

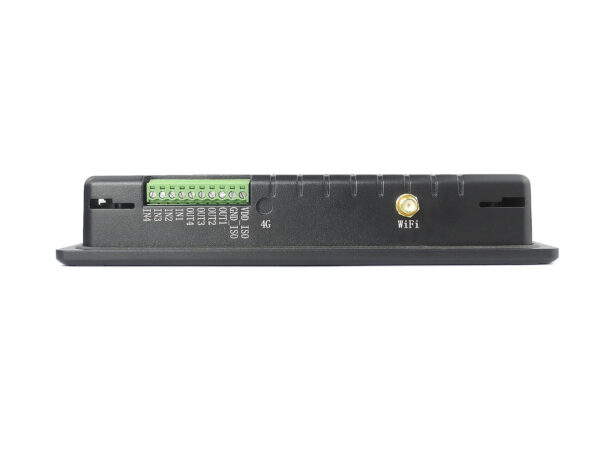

| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI-D(Micro HDMI) 2.0, can be driven up to 4K 60FPS |

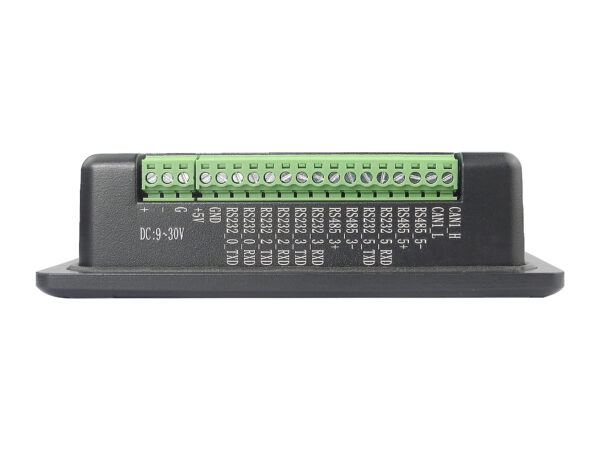

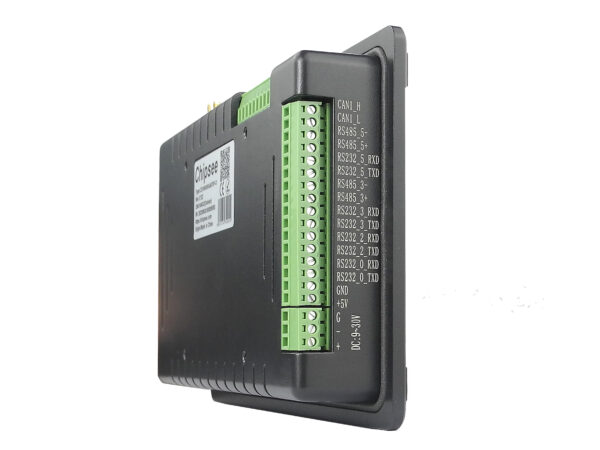

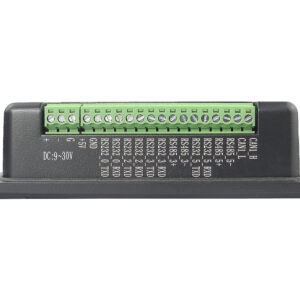

| RS232 | Default 2 x RS232, up to 4 x RS232 |
| RS485 | Default 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232 |
| Ethernet | 2 x Giga LAN |
| I2C | Not supported. |
| WiFi/BT | Depends on CM5 |
| 4G | Optional |
| Audio | 3.5mm Audio Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| ZigBee | N/A |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | 9-30V DC, (supports optional 24V ignition signal) |
| Power Consumption | 11.4W Max, 6W typical |
| Current at 12V | 950mA Max |
| Working Temperature | -10°C to +60°C |
| Camera | Optional |
| OS | Raspberry Pi OS |
| Mounting Method | VESA, PANEL |
