PPC-CM5-050
$118
- Description
- Additional information
Description
The PPC-CM5-050 is a compact, durable industrial PC designed for demanding environments and diverse applications.

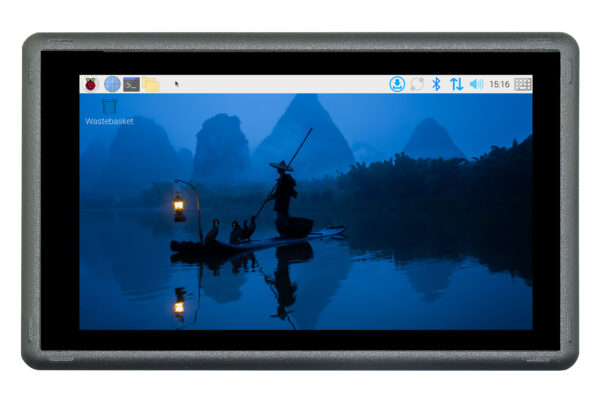

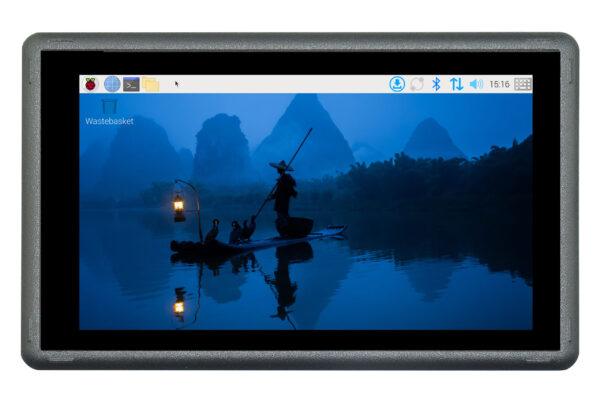

Powered by the Raspberry Pi Compute Module 5, this device features a 5” IPS touch screen with a resolution of 1280×720 and a brightness of 400 cd/m², ensuring excellent readability in various conditions. Its robust design, complete with bezels, allows flexible mounting options, including industrial cabinets or integration with existing systems.
Expandable and customizable, the PPC-CM5-050 is perfect for human-machine interface (HMI), process monitoring, and automotive applications. It also provides reliability and efficiency for industrial and commercial use.
Additional information
| Weight | 0.57 kg |
|---|---|
| Dimensions | 13.85 × 8.47 × 2.71 cm |
- Description
- Specification
- Documents
The PPC-CM5-050 combines powerful hardware and connectivity options to meet the needs of modern industrial projects.
At its core, it uses the Raspberry Pi Compute Module 5(CM5), equipped with a quad-core Cortex-A76 processor running at 2.4GHz and up to 8GB LPDDR4X-4267 SDRAM.

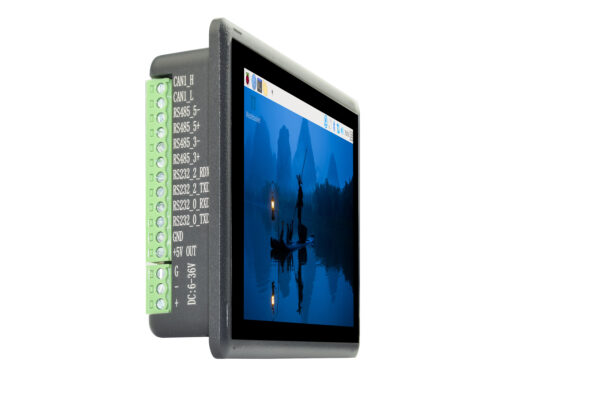

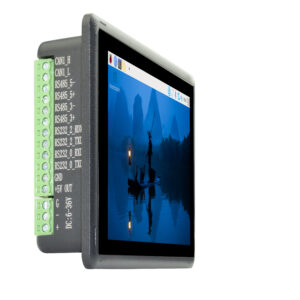

The device supports multiple communication protocols, including RS232, RS485, and CAN FD BUS, ensuring versatile integration capabilities.
Its capacitive 5-point touch screen features armoured glass for durability, while a wide voltage range (6V-36V) and an extended operating temperature (-20°C to +60°C) ensure reliable performance in harsh conditions.
| Weight | 570 g |
|---|---|
| Dimensions | 138.55 × 84.70 × 27.10 mm |
| Net weight | 310 g |
| CPU | ARM: Raspberry Pi CM5 |
| CPU Frequency | Quad(4) Core Cortex-A76 at 2.4GHz |
| RAM | Based on CM5 |
| eMMC | Based on CM5 |

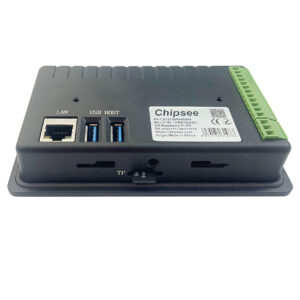

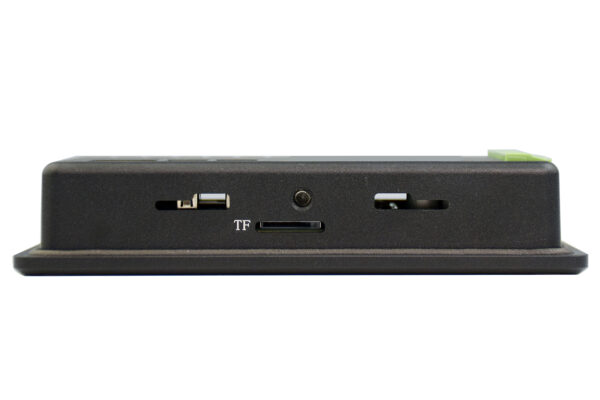

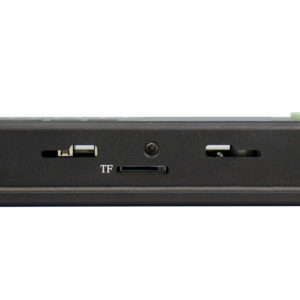

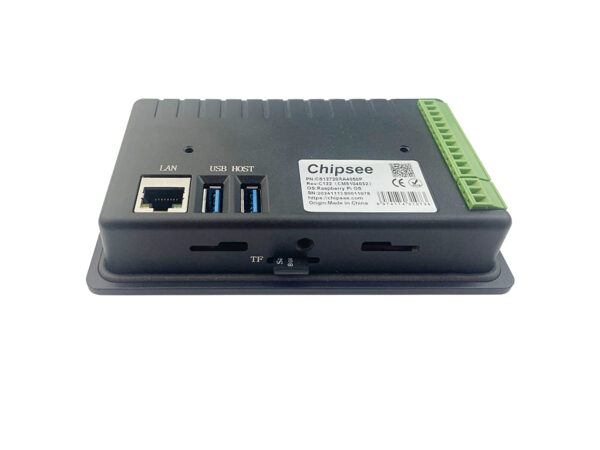

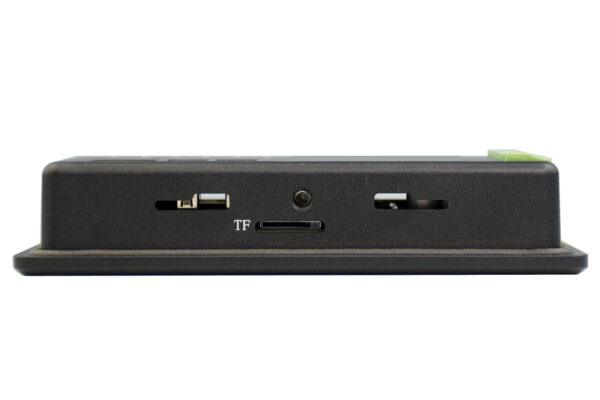

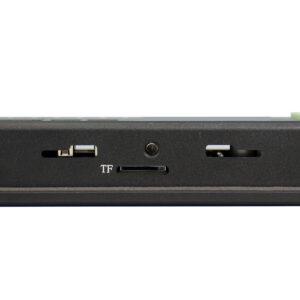

| Storage | Support 1 x TF Card, only used with CM5 Lite to boot system, can not be used as an external storage for CM5. |
| Display size | 5.0″ |
| Display resolution | 1280 x 720 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive + Armored Glass |

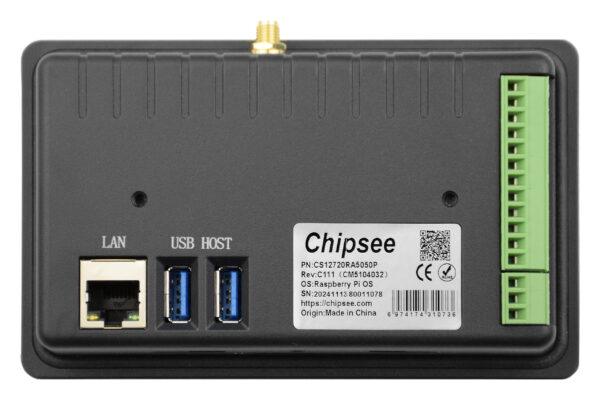

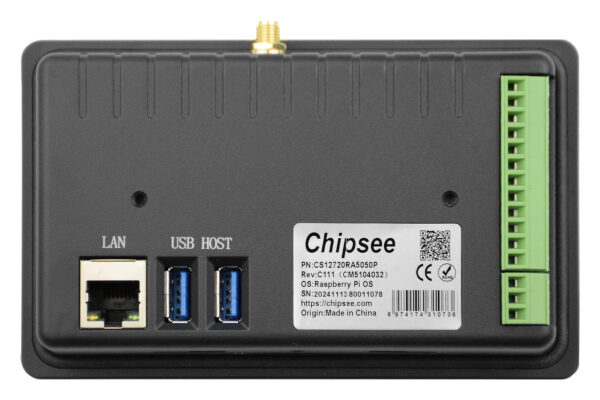

| USB | 2x USB 3.0 HOST, 1 x USB Type-C |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| GPIO | Not supported. |

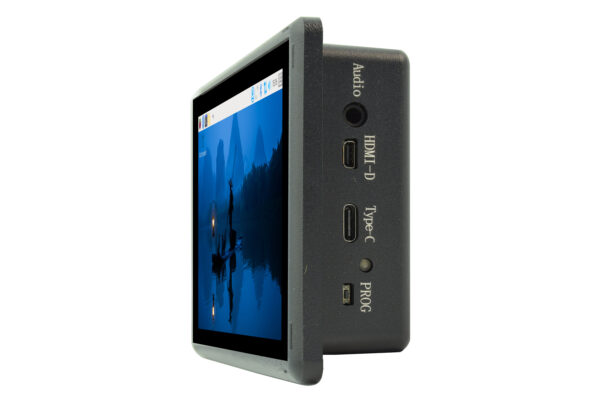

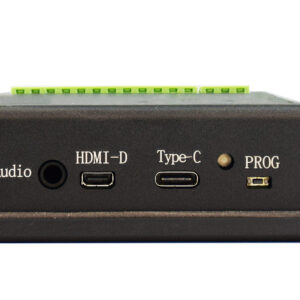

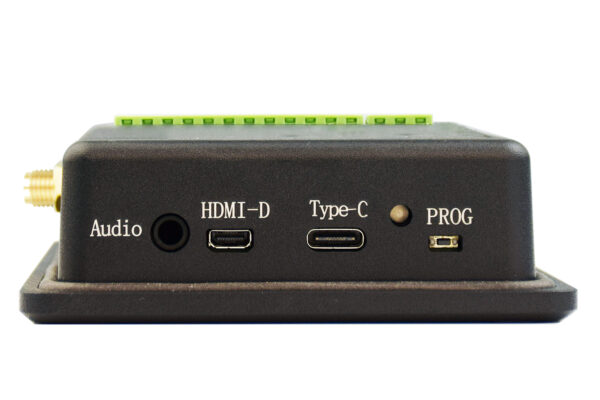

| HDMI | 1 x HDMI-D(Micro HDMI) 2.0, can be driven up to 4K 60FPS |

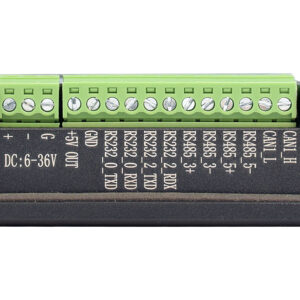

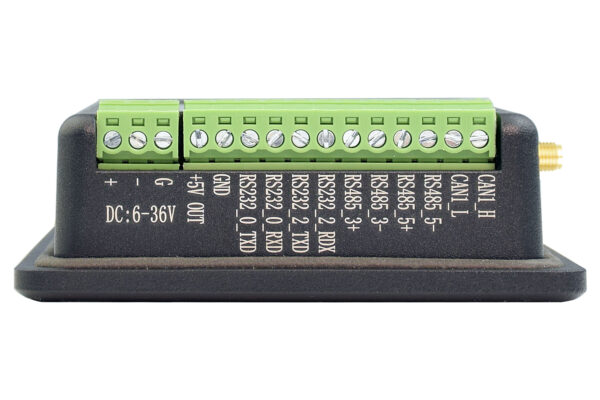

| RS232 | Default 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS4851, these 2 x RS485 can be configured as 2 x RS232 |

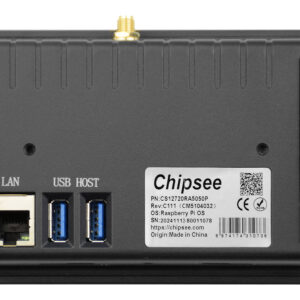

| Ethernet | 1 x Giga LAN |
| I2C | Not supported. |

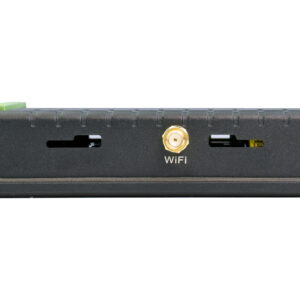

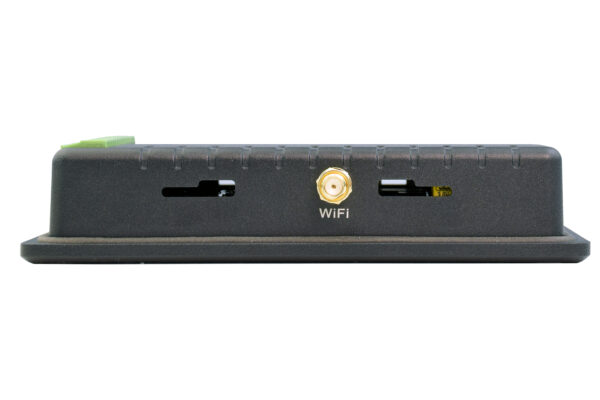

| WiFi/BT | Depends on CM5 |
| 4G | Not supported |

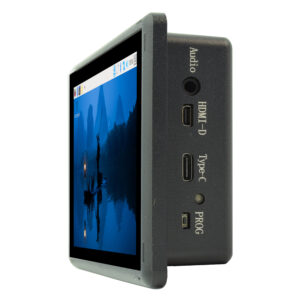

| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| ZigBee | N/A |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | 9~30V DC |
| Power Consumption | 9.6W max, 6W typical |
| Working Temperature | -20℃ ~ 60℃ |
| Current at 12V | 800mA |
| Camera | Yes, not mounted by default. Available on the board in the embedded PC. Requires a customized case to be exposed in an enclosed PC. |
| OS | Raspberry Pi OS |
| Mounting Method | VESA, PANEL |
