PPC-A76-070
$387
- Description
- Additional information
Description
The PPC-A76-070 is a multi-purpose embedded PC designed for challenging industrial environments.
Using the advanced Rockchip RK3588J processor as its core, this product offers an excellent and productive solution for different professional applications. Such a device is created to perform difficult tasks easily due to its reliable design and extensive functionality enabling its use in various industry systems and operations.
When used in automation, control systems, or data processing, PPC-A76-070 provides an effective and strong element within any industrial setup.
Additional information
| Weight | 5.3 kg |
|---|---|
| Dimensions | 40 × 25.6 × 5.25 cm |
- Description
- Specification
- Documents
The PPC-A76-070 is powered by Rockchip RK3588J which features an octa-core CPU with four Cortex-A76 cores and four Cortex-A55 cores, with a capacity of 8GB of LPDDR4 RAM and 32GB of eMMC storage.

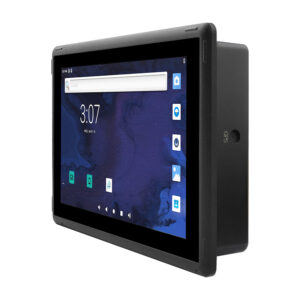

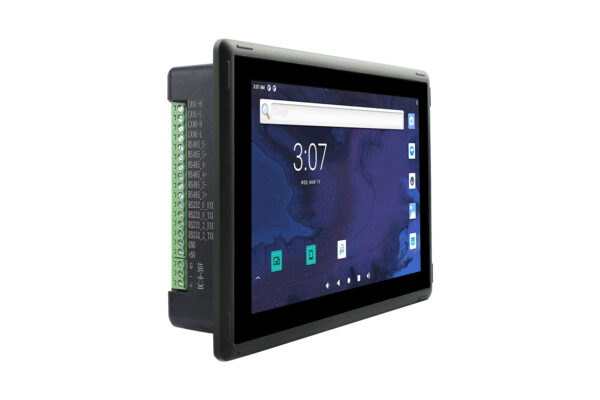

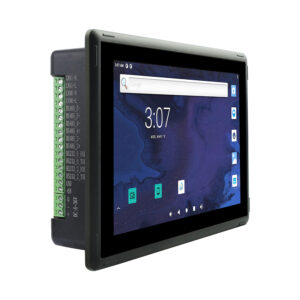

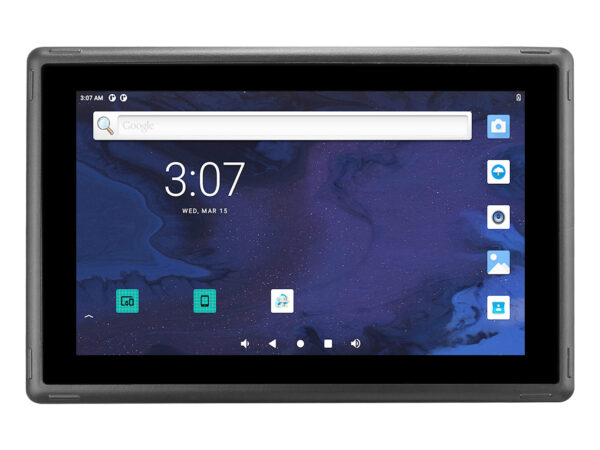

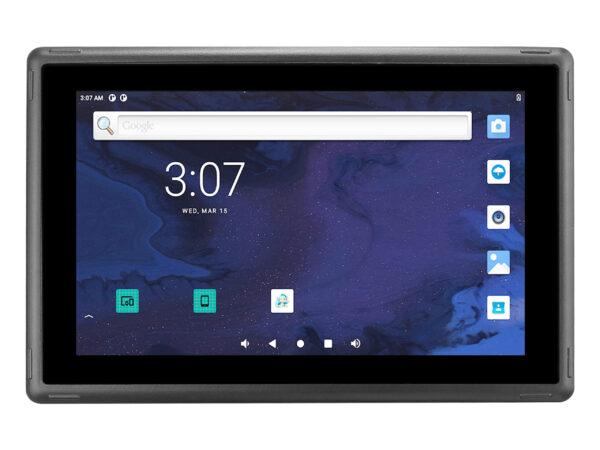

The device also has a 7-inch capacitive multi-touch display with a resolution of 1024×600 pixels.
It also features double Gigabit Ethernet ports, several USB 3.0 ports, and multiple I/O options, making them easily integrated into various industrial settings.
| Weight | 900 g |
|---|---|
| Dimensions | 188.05 × 123.11 × 33.20 mm |
| Net weight | 700 g |
| CPU | ARM: Rockchip RK3588J |
| CPU Frequency | Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz) |
| GPU | ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding. |
| NPU | Neural network acceleration engine with 6Tops int8, supports Int4/8/16/FP16/BF16/TF32. |
| RAM | 8GB LPDDR4 |
| eMMC | 64GB |
| SSD | Not supported |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display size | 7.0″ |
| Display resolution | 1024*600 |
| Brightness (NIT) | 400 NIT |
| Touch Screen | Capacitive |

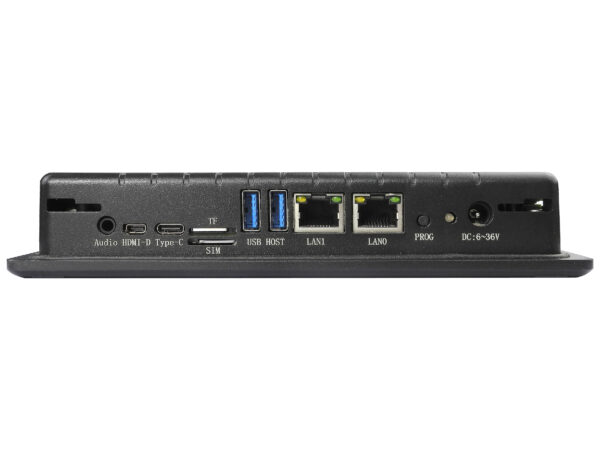

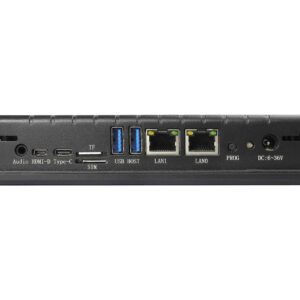

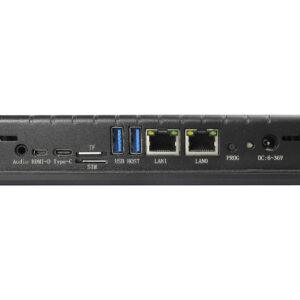

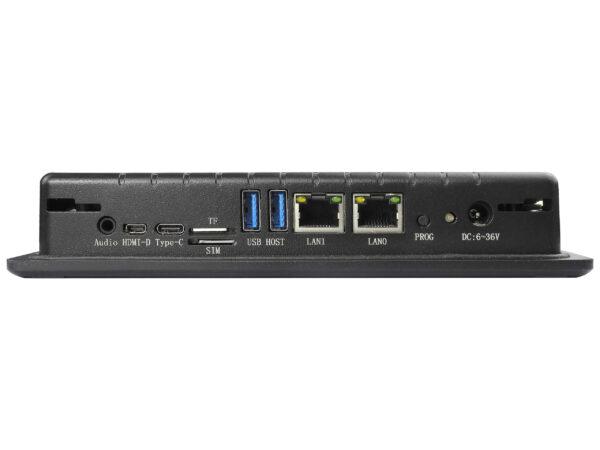

| USB | 1x USB Type-C, 2x USB 3.0 HOST |

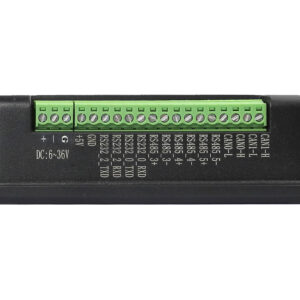

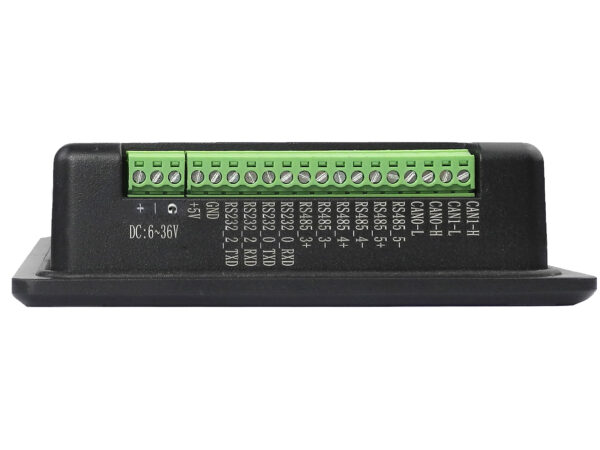

| CAN | 2 x CAN by default |

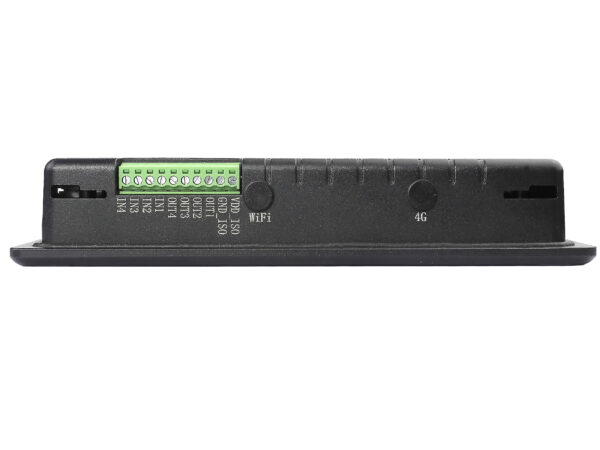

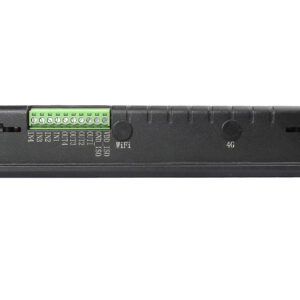

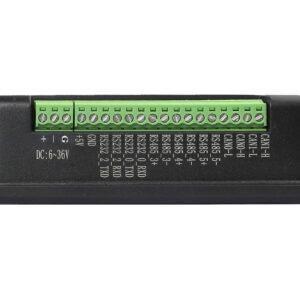

| GPIO | 8 Channels, 4 Input, 4 Output |
| HDMI | 1 x HDMI-D (Micro HDMI) OUT |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | 3 x RS485 by default |
| Ethernet | 2 x RJ45, GbE |
| WiFi/BT | Built-in |
| 4G | Optional |
| PoE | Not supported |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| Power Input | 9-30V DC, (supports optional 24V ignition signal) |
| Power Consumption | 8W |
| Working Temperature | -10°C to +60°C |
| OS | Buildroot, Debian |

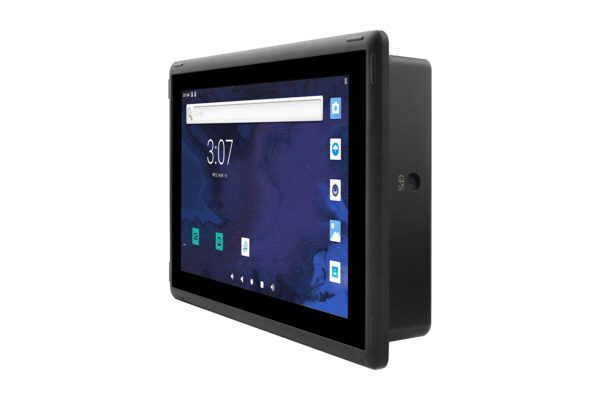

| Mounting Method | VESA, PANEL |
