CS-A55-BOX
$158
- Description
- Additional information
Description

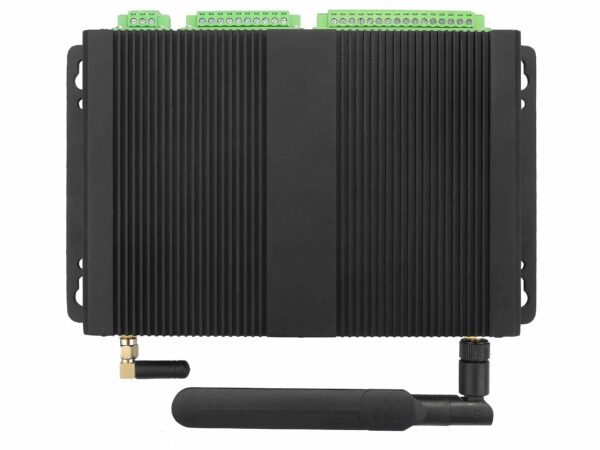

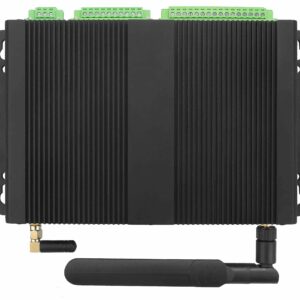

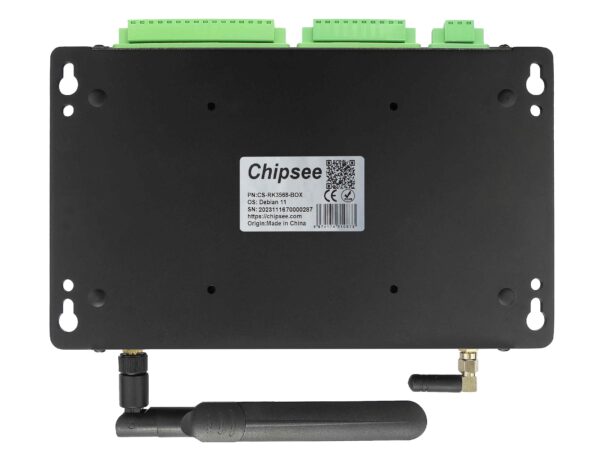

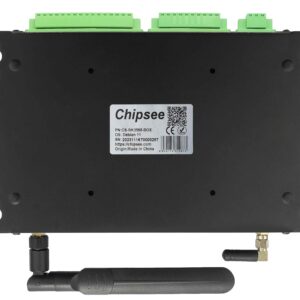

The CS-A55-BOX (CS-RK3568-BOX) is an efficient, fanless industrial box PC driven by the Rockchip RK3568 low-power processor that integrates a quad-core Cortex®-A55 processor operating at 2.0GHz, offering a blend of performance and energy efficiency. Its compact design with integrated brackets enables secure and straightforward mounting on any flat surface, including industrial cabinets and walls.
Designed to thrive in demanding settings, this unit boasts a comprehensive range of connectivity options, ensuring versatility and reliability in harsh industrial and challenging outdoor environments.

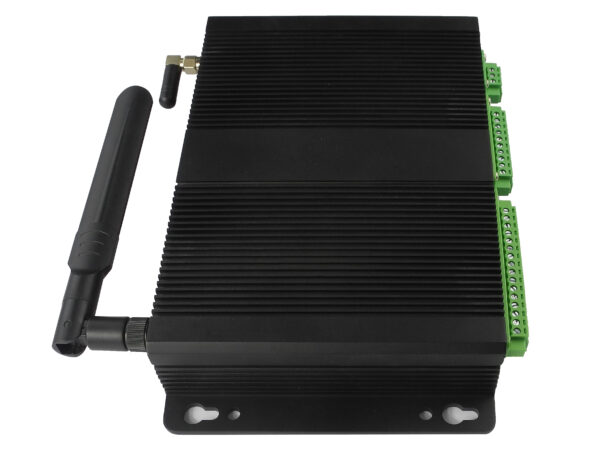

Encased in specially engineered aluminum housing with fins, the CS-A55-BOX achieves superior heat dissipation through passive cooling. This innovative design obviates the need for internal fans, contributing to a quieter operation and reducing maintenance costs and efforts. This makes the CS-A55-BOX an optimal choice for situations where a durable, low-maintenance, and noise-sensitive solution is required.
Additional information
| Weight | 5.3 kg |
|---|---|
| Dimensions | 20.9 × 12.5 × 3.73 cm |
- Description
- Specification
- Documents
The CS-A55-BOX has a high-performance quad-core Cortex®-A55 processor, Rockchip RK3568, clocking in at 2.0GHz, ensuring efficient and robust processing power.

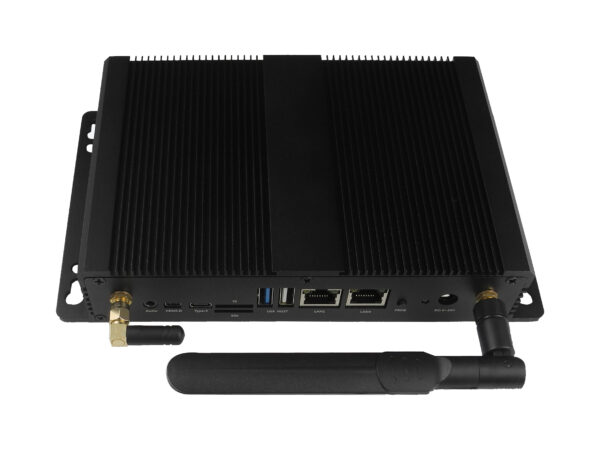

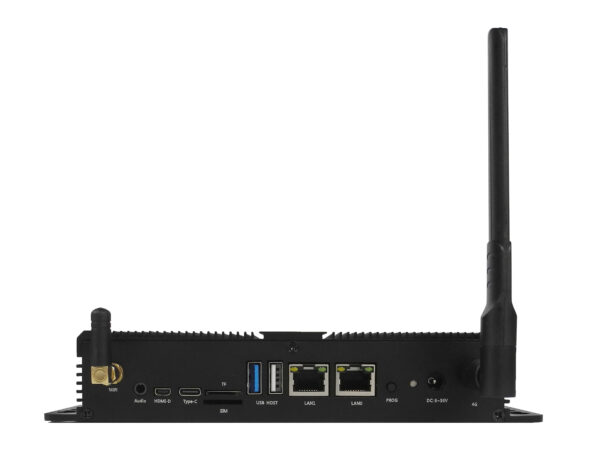

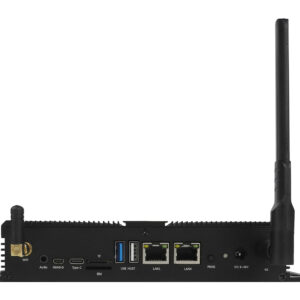

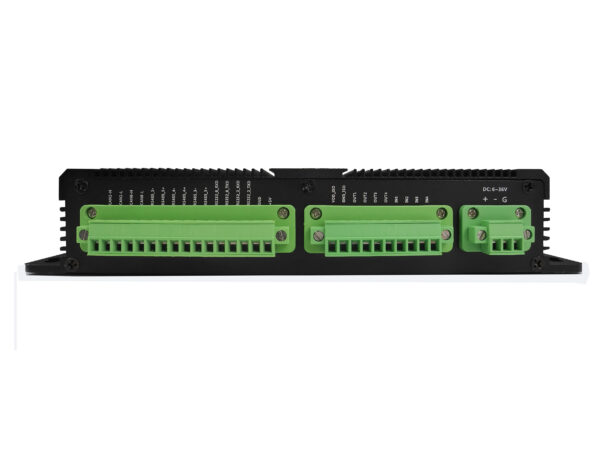

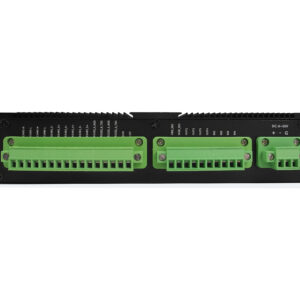

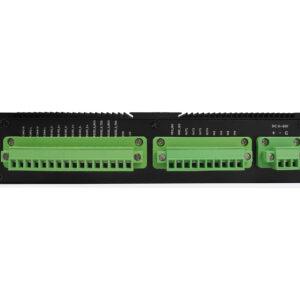

This unit is outfitted with a comprehensive array of connectivity features. It includes a CAN bus interface for automotive and industrial applications, versatile USB ports, dual LAN ports for network redundancy, RS232 and RS485 interfaces for serial communications, and an HDMI output to support an external HD monitor.
For wireless communication, the CS-A55-BOX comes standard with a WiFi/Bluetooth module, while adding a 4G/LTE module is optional and can be included at the time of purchase. Each module is equipped with its antenna to ensure optimal connectivity.
The power supply section of the CS-A55-BOX is designed with multiple protection mechanisms, safeguarding against over-current, over-voltage, power surges, and reverse polarity. These safety features ensure the device adheres to strict industrial safety standards, making it a reliable choice for various industrial applications.
| Weight | 1200 g |
|---|---|
| Dimensions | 209 × 125 × 37.3 mm |
| Net weight | 900 g |
| Form-factor | Box |
| CPU | ARM: Rockchip RK3568 |
| RAM | 2GB LPDDR4 |
| eMMC | 16GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| USB | 1 x USB 3.0 HOST, 1 x USB Type-C, 1x USB 2.0 HOST |
| CAN | 2 x CAN by default |
| RS232 | 2 x RS232 by default (Optional 6 x RS232 at most, including 1 debug port) |
| RS485 | 3 x RS485 at most by default |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| LAN | 2 x RJ45, GbE |
| HDMI | 1 x HDMI-D (Micro HDMI) OUT |
| PoE | Optional |
| GPIO | 8 Channels, 4 Input, 4 Output |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Onboard, driven by GPIO |
| WiFi/BT | Onboard |
| 4G/LTE | Optional |
| OS | Buildroot, Android, Debian |
| Power Consumption | 4.35W (max) |
| Current | 290mA (max) at 15V |
| Working Temperature | -40°C to +85°C |
| Power Input | 6~36V DC |
| Mounting method | Rear, VESA |
| GTIN | 6974174310941 |
